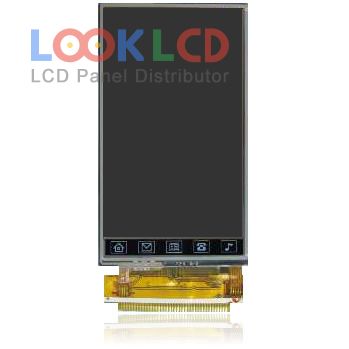

| Nomor Bagian | TFT240320-237-E |
| Merek | Other |
| Ukuran | 2.8 |
| Aplikasi | MPH |
| Resolusi | 240×320 |
| Komposisi | LCM |
| Kecerahan | 125 |
| CR | 95:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | CPU/RGB/SPI |
| merek panel | TRULY |
| model panel | TFT240320-237-E |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 2.8 inch |
| resolusi | 240(RGB)×320 , QVGA |
| mode tampilan | TN, Normally White, Transflective |
| daerah aktif | 43.2×57.6 mm |
| garis besar | 50×69.2 mm |
| permukaan | |
| kecerahan | 125 cd/m² (Typ.) |
| rasio kontras | 95:1 (Typ.)(Transmissive)3.5:1 (Typ.)(Reflective) |
| menampilkan warna | 262K |
| waktu merespon | 32.8 (Typ.)(Tr+Td) |
| sudut pandang | 45/45/41/32 (Typ.)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 1S4PWLEDWithout Driver |
| antarmuka sinyal | CPU/RGB/SPI, 47 pins |
| tegangan masukan | (1.8/2.8)/2.8V (Typ.)(IOVCC/VCC) |
| aplikasi | MPH |
