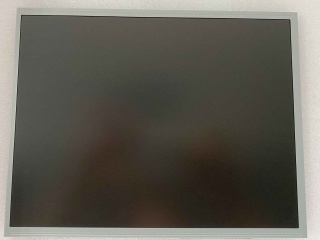

| Nomor Bagian | TCG121XGLPAPNN-AN20-S |
| Merek | Kyocera |
| Ukuran | 12.1 |
| Aplikasi | Industrial |
| Resolusi | 1024×768 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 750:1 |
| Warna | 262K/16.2M |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek | Kyocera |
| model | TCG121XGLPAPNN-AN20-S |
| ukuran diagonal | 12.1 inch |
| jenis | a-Si TFT-LCD, LCM |
| format piksel | 1024(RGB)×768 [XGA] 105PPI |
| konfigurasi | RGB Vertical Stripe |
| daerah aktif | 245.76(H)×184.32(V) mm |
| garis besar redup. | 260.5(H)×203.4(V) ×10.8(D) mm |
| daerah bezel | 249.0(H)×187.5(V) mm |
| perlakuan | Antiglare |
| pencahayaan | 500 cd/m² (Typ.) |
| rasio kontras | 750:1 (Typ.) (TM) |
| arah pandangan | Symmetry |
| waktu merespon | 18/12 (Typ.)(Tr/Td) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| Modus operasi | AWV, Normally Black, Transmissive |
| warna pendukung | 262K/16.2M 50% NTSC |
| sumber cahaya | WLED , 50K hours , With LED Driver |
| berat | 670g |
| dirancang untuk | Industrial |
| kecepatan bingkai | 60Hz |
| panel sentuh | Without |
| tipe antarmuka | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Sumber Daya listrik | 3.3V (Typ.) |
| lingkungan | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C |
