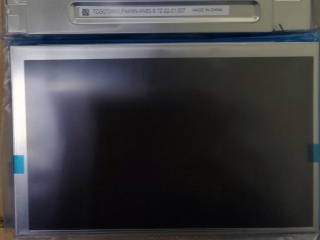

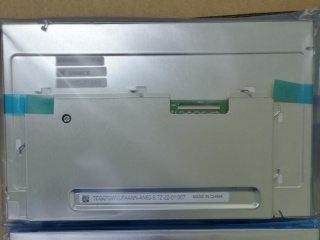

| Nomor Bagian | TCG070WVLPAANN-AN50-S |
| Merek | Kyocera |
| Ukuran | 7.0 |
| Aplikasi | Industrial |
| Resolusi | 800×480 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 262K |
| Lampu latar | 2 |
| Antarmuka | Parallel |
| merek panel | Kyocera |
| ukuran panel | 7.0" |
| resolusi | 800(RGB)×480, WVGA, 133PPI |
| area tampilan | 152.4(W)×91.44(H) mm |
| ukuran garis besar | 165(W)×104.4(H) ×8.5(D) mm |
| kecerahan | 900 cd/m² (Typ.) |
| sudut pandang | 80/80/60/80 (Typ.)(CR≥10) |
| tampilan terbaik di | 12 o'clock |
| menampilkan warna | 262K 49% NTSC |
| frekuensi | - |
| berat panel | 195g (Typ.) |
| antarmuka sinyal | Parallel RGB (1 ch, 6-bit) , 40 pins Connector |
| tegangan masukan | 3.3V (Typ.) |
| lingkungan | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| model panel | TCG070WVLPAANN-AN50-S |
| tipe panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| bukaan bezel | 154.4(W)×93.4(H) mm |
| permukaan | Antiglare |
| rasio kontras | 1000:1 (Typ.) (TM) |
| mode tampilan | TN, Normally White, Transmissive |
| waktu merespon | 5/25 (Typ.)(Tr/Td) |
| jenis lampu | 2 strings WLED , 50K hours , Without Driver |
| layar sentuh | Without |
| aplikasi | Industrial |
