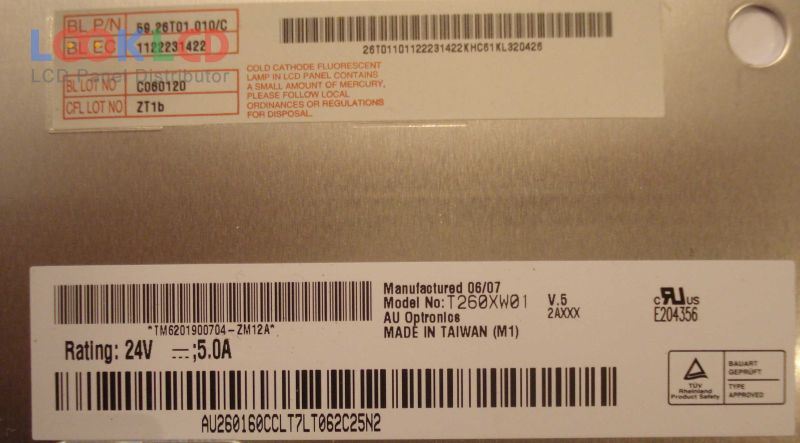

| Nomor Bagian | T260XW01 V5 |
| Merek | AUO |
| Ukuran | 26.0 |
| Aplikasi | LCTV |
| Resolusi | 1280×768 |
| Komposisi | LCM |
| Kecerahan | 500 |
| CR | 600:1 |
| Warna | 16.7M |
| Lampu latar | CCFL |
| Antarmuka | LVDS |
| merek panel | AUO |
| model panel | T260XW01 V5 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 26.0 inch |
| resolusi | 1280(RGB)×768 , WXGA |
| mode tampilan | VA, Normally Black, Transmissive |
| daerah aktif | 566.4×339.84 mm |
| garis besar | 620.8×389 mm |
| permukaan | Hard coating, Antireflection |
| kecerahan | 500 cd/m² (Typ.) |
| rasio kontras | 600:1 (Typ.) |
| menampilkan warna | 16.7M (8-bit) |
| waktu merespon | 15/10 (Typ.)(Tr/Td); 12 (Typ.)(G to G) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 16 pcsCCFLEmbedded (Inverter) |
| antarmuka sinyal | LVDS (1 ch, 8-bit), 20 pins |
| tegangan masukan | 5.0V (Typ.) |
| aplikasi | LCTV |
