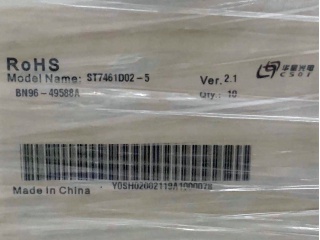

| Nomor Bagian | ST7461D02-5 |
| Merek | CSOT |
| Ukuran | 75 |
| Aplikasi | TV Sets |
| Resolusi | 3840×2160 |
| Komposisi | a-Si TFT-LCD, CELL |
| Kecerahan | |
| CR | 6000:1 |
| Warna | 1.07B |
| Lampu latar | No |
| Antarmuka | USI-T |
| merek panel | CSOT |
| model panel | ST7461D02-5 |
| ukuran panel | 75" |
| tipe panel | a-Si TFT-LCD, CELL |
| resolusi | 3840(RGB)×2160, UHD, 59PPI |
| format piksel | RGB Vertical Stripe |
| area tampilan | 1650.24(W)×928.26(H) mm |
| bukaan bezel | - |
| ukuran garis besar | 1662.24(W)×941.96(H) ×1.34(D) mm |
| permukaan | Antiglare (Haze 2%), Hard coating (3H) |
| kecerahan | 0 cd/m² |
| rasio kontras | 6000:1 (Typ.) (TM) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10) |
| mode tampilan | HVA, Normally Black, Transmissive |
| tampilan terbaik di | Symmetry |
| waktu merespon | 6.5 (Typ.)(G to G) |
| kedalaman kaca | 0.50+0.50 mm |
| keterusan | 5.5% (Typ.)(with Polarizer) |
| menampilkan warna | 1.07B 93% DCI-P3 |
| jenis lampu | No B/L |
| frekuensi | 120Hz |
| layar sentuh | Without |
| ic pengemudi | COFBuilt-in 12 source chips |
| berat panel | 4.77Kgs (Typ.) |
| aplikasi | TV Sets |
| antarmuka sinyal | USI-T , 192 pins Connector |
| lingkungan | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
