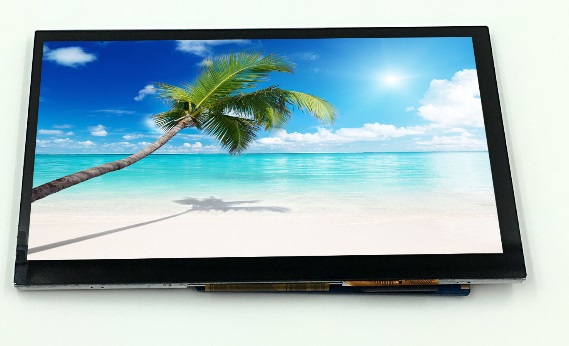

| Nomor Bagian | S101WS07 |
| Merek | CDTECH |
| Ukuran | 10.1 |
| Aplikasi | Industrial |
| Resolusi | 1024×600 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 600:1 |
| Warna | 16.7M |
| Lampu latar | 3S6P |
| Antarmuka | Parallel |
| pabrikan | CDTECH |
| ukuran layar | 10.1 inch |
| nomor piksel | 1024(RGB)×600 (WSVGA) 117PPI |
| area aktif (mm) | 222.72 × 125.28 (H×V) |
| area bezel (mm) | 226.34 × 128.1 (H×V) |
| pencahayaan | 200 cd/m² (Typ.) |
| sudut pandang | 65/65/55/65 (Typ.)(CR≥10) |
| pemandangan bagus di | 12 o'clock |
| kedalaman warna | 16.7M |
| massa | TBD |
| tingkat penyegaran | 60Hz |
| jenis sinyal | Parallel RGB (1 ch, 8-bit) , 50 pins FPC |
| sumber tegangan | 3.3/10.85/21/-5.5V (Typ.)(DVDD/AVDD/VGH/VGL) |
| maks. peringkat | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| nama model | S101WS07 |
| tipe layar | LCM , a-Si TFT-LCD |
| pengaturan | RGB Vertical Stripe |
| garis besar (mm) | 235 × 143 × 5.39 (H×V×D) |
| perlakuan | - |
| rasio kontras | 600 : 1 (Typ.) (TM) |
| tanggapan | 6/20 (Typ.)(Tr/Td) ms |
| mode kerja | TN, Normally White, Transmissive |
| lampu latar | 3S6P WLED , 25K hours , No Driver |
| digunakan untuk | Industrial |
| layar sentuh | Without |
