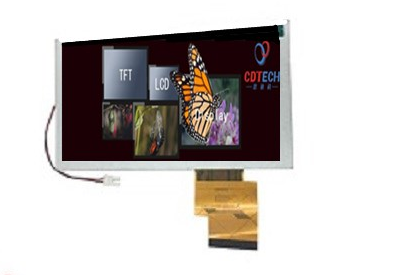

| Nomor Bagian | S062WV04 |
| Merek | CDTECH |
| Ukuran | 6.2 |
| Aplikasi | Industrial Automotiv |
| Resolusi | 800×480 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 600:1 |
| Warna | 16.7M |
| Lampu latar | 3S9P |
| Antarmuka | |
| pabrikan | CDTECH |
| ukuran layar | 6.2 inch |
| nomor piksel | 800(RGB)×480 (WVGA) 150PPI |
| area aktif (mm) | 137.52 × 77.232 (H×V) |
| area bezel (mm) | 140.7 × 80.4 (H×V) |
| pencahayaan | 600 (Typ.)(cd/m²) |
| sudut pandang | 65/65/55/65 (Typ.)(CR≥10) |
| pemandangan bagus di | - |
| kedalaman warna | 16.7M |
| massa | TBD |
| tingkat penyegaran | 60Hz |
| nama model | S062WV04 |
| tipe layar | LCM , a-Si TFT-LCD |
| pengaturan | RGB Vertical Stripe |
| garis besar (mm) | 155.2 × 88.2 × 3.7 (H×V×D) |
| perlakuan | - |
| rasio kontras | 600 : 1 (Typ.) (TM) |
| mode kerja | TN, Normally White, Transmissive |
| tanggapan | 30/30 (Typ.)(Tr/Td) ms |
| lampu latar | 3S9P WLED , 25K hours , No Driver |
| digunakan untuk | Industrial Automotive Display |
| layar sentuh | Without |
| AT062TN12 | Innolux | 6.2 | |
| CLAA062LA01CW | CPT | 6.2 | 800×480 |
| PW062XS6 | E Ink | 6.2 | 480×234 |
| PW062XU7 | E Ink | 6.2 | 480×234 |
| PW062XU8 | E Ink | 6.2 | 480×234 |
| TM062RDH03 | Tianma | 6.2 | 800×480 |
| TM062RDS01 | Tianma | 6.2 | 800×480 |
| TM062RDZG10 | Tianma | 6.2 | 800×480 |
| TX16D11VM2CCA | KOE | 6.2 | 640×240 |
| TX16D18VM2CAB | KOE | 6.2 | 800×300 |
