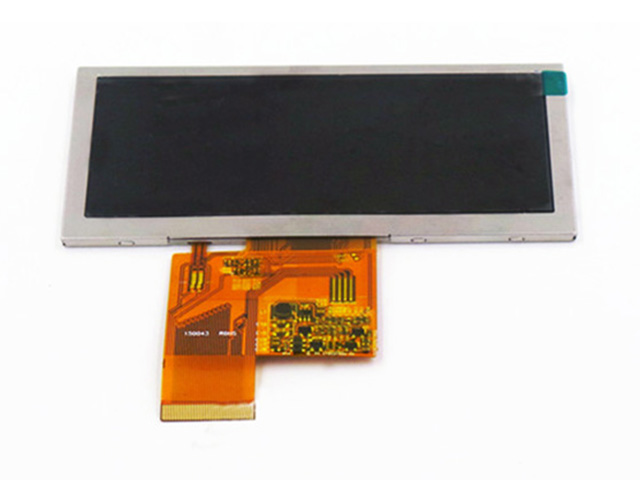

| Nomor Bagian | S046WV01 |
| Merek | CDTECH |
| Ukuran | 4.6 |
| Aplikasi | Industrial |
| Resolusi | 800×320 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 500:1 |
| Warna | 16.7M |
| Lampu latar | 6S2P |
| Antarmuka | Parallel |
| merek panel | CDTECH |
| model panel | S046WV01 |
| ukuran panel | 4.6" |
| tipe panel | a-Si TFT-LCD, LCM |
| resolusi | 800(RGB)×320, 188PPI |
| format piksel | RGB Vertical Stripe |
| area tampilan | 108(W)×43.2(H) mm |
| bukaan bezel | 110.6(W)×46.0(H) mm |
| ukuran garis besar | 120.7(W)×56.16(H) ×3.3(D) mm |
| permukaan | - |
| kecerahan | 350 cd/m² (Typ.) |
| rasio kontras | 500:1 (Typ.) (TM) |
| sudut pandang | 65/65/55/65 (Typ.)(CR≥10) |
| mode tampilan | TN, Normally White, Transmissive |
| tampilan terbaik di | 12 o'clock |
| waktu merespon | 20 (Typ.)(Tr+Td) |
| menampilkan warna | 16.7M 50% NTSC |
| jenis lampu | 6S2P WLED , 25K hours , Without Driver |
| frekuensi | 60Hz |
| layar sentuh | Without |
| berat panel | TBD |
| aplikasi | Industrial |
| antarmuka sinyal | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| tegangan masukan | 3.3V (Typ.)(VDD) |
| lingkungan | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
