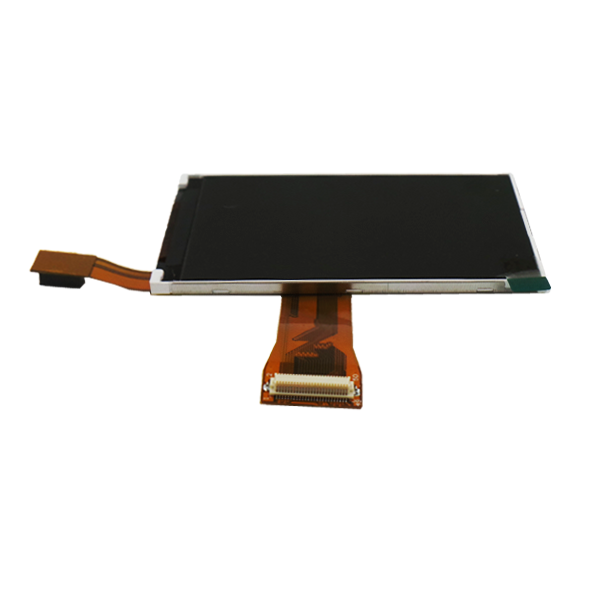

| Nomor Bagian | S032Q10 |
| Merek | CDTECH |
| Ukuran | 3.2 |
| Aplikasi | Handheld & PDA |
| Resolusi | 240×320 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 350:1 |
| Warna | 262K |
| Lampu latar | 1S5P |
| Antarmuka | CPU |
| merek panel | CDTECH |
| model panel | S032Q10 |
| ukuran panel | 3.2" |
| tipe panel | a-Si TFT-LCD, LCM |
| resolusi | 240(RGB)×320, QVGA, 127PPI |
| format piksel | RGB Vertical Stripe |
| area tampilan | 47.88(W)×63.84(H) mm |
| bukaan bezel | - |
| ukuran garis besar | 55.04(W)×77.7(H) ×2.5(D) mm |
| permukaan | - |
| kecerahan | 270 cd/m² (Typ.) |
| rasio kontras | 350:1 (Typ.) (TM) |
| sudut pandang | 55/65/65/65 (Typ.)(CR≥10) |
| mode tampilan | TN, Normally White, Transmissive |
| tampilan terbaik di | 9 o'clock |
| waktu merespon | 20 (Typ.)(Tr+Td) |
| menampilkan warna | 262K |
| jenis lampu | 1S5P WLED , 25K hours , Without Driver |
| frekuensi | - |
| layar sentuh | Without |
| berat panel | TBD |
| aplikasi | Handheld & PDA |
| antarmuka sinyal | CPU , 37 pins FPC |
| tegangan masukan | 3.3/3.3V (Max.)(VCC/IOVCC) |
| lingkungan | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
