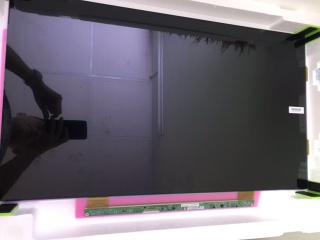

| Nomor Bagian | PT320AT01-3 |
| Merek | HKC |
| Ukuran | 32.0 |
| Aplikasi | TV Sets |
| Resolusi | 1366×768 |
| Komposisi | a-Si TFT-LCD , CELL |
| Kecerahan | |
| CR | 3000:1 |
| Warna | 16.7M |
| Lampu latar | No |
| Antarmuka | LVDS |
| merek panel | HKC |
| ukuran panel | 32.0" |
| resolusi | 1366(RGB)×768, WXGA, 49PPI |
| area tampilan | 697.685(W)×392.256(H) mm |
| ukuran garis besar | 715(W)×411(H) ×1.4(D) mm |
| kecerahan | 0 cd/m² |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10) |
| tampilan terbaik di | Symmetry |
| kedalaman kaca | 0.50+0.50 mm |
| menampilkan warna | 16.7M 68% NTSC |
| frekuensi | 60Hz |
| ic pengemudi | COF Built-in 2 source + 2 gate chips |
| berat panel | 930g (Typ.) |
| antarmuka sinyal | LVDS (1 ch, 8-bit) , 30 pins Connector |
| tegangan masukan | 12.0V (Typ.) |
| lingkungan | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| model panel | PT320AT01-3 |
| tipe panel | a-Si TFT-LCD , CELL |
| format piksel | RGB Vertical Stripe |
| bukaan bezel | - |
| permukaan | Antiglare (Haze 3%), Hard coating (3H) |
| rasio kontras | 3000:1 (Typ.) (TM) |
| mode tampilan | FSA, Normally Black, Transmissive |
| waktu merespon | 8.5 (Typ.)(G to G) |
| keterusan | 6.5% (Typ.)(with Polarizer) |
| jenis lampu | No B/L |
| layar sentuh | Without |
| aplikasi | TV Sets |
