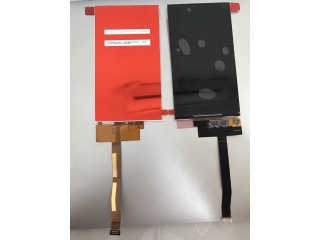

| Nomor Bagian | PJ050IA-05L |
| Merek | Innolux |
| Ukuran | 5.0 |
| Aplikasi | Mobile Phone |
| Resolusi | 720×1280 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | 6S2P |
| Antarmuka | MIPI |
| pabrikan | Innolux |
| nama model | PJ050IA-05L |
| ukuran layar | 5.0 inch |
| tipe layar | LCM , a-Si TFT-LCD |
| nomor piksel | 720(RGB)×1280 (WXGA) 294PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 62.1 × 110.4 (H×V) |
| garis besar (mm) | 64.18 × 117.56 × 1.42 (H×V×D) |
| area bezel (mm) | - |
| perlakuan | Glare (Haze 0%), Hard coating (3H) |
| pencahayaan | 450 cd/m² (Typ.) |
| rasio kontras | 1000 : 1 (Typ.) (TM) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| tanggapan | 25 (Typ.)(Tr+Td) ms |
| pemandangan bagus di | Symmetry |
| mode kerja | AAS, Normally Black, Transmissive |
| kedalaman warna | 16.7M 72% NTSC |
| lampu latar | 6S2P WLED , No Driver |
| massa | 17.2g |
| digunakan untuk | Mobile Phone |
| tingkat penyegaran | 60Hz |
| layar sentuh | Without |
| jenis sinyal | MIPI (4 data lanes) , 30 pins Connector |
| sumber tegangan | 1.8/5.4/-5.4V (Typ.)(VDDI/AVDD/AVEE) |
| maks. peringkat | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
