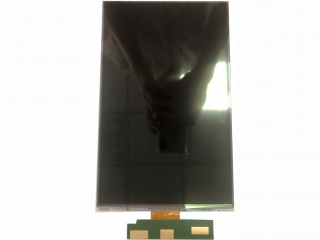

| Nomor Bagian | P101GWWC R5 |
| Merek | IVO |
| Ukuran | 10.1 |
| Aplikasi | Pad & Tablet |
| Resolusi | 800×1280 |
| Komposisi | a-Si TFT-LCD, CELL |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | No |
| Antarmuka | MIPI |
| merek | IVO |
| model | P101GWWC R5 |
| ukuran diagonal | 10.1 inch |
| jenis | a-Si TFT-LCD, CELL |
| format piksel | 800(RGB)×1280 [WXGA] 150PPI |
| konfigurasi | RGB Vertical Stripe |
| daerah aktif | 135.36(H)×216.576(V) mm |
| garis besar redup. | 139.36(H)×225.8(V) ×1.06(D) mm |
| daerah bezel | - |
| perlakuan | Antiglare |
| pencahayaan | 0 cd/m² |
| rasio kontras | 1000:1 (Typ.) (TM) |
| arah pandangan | Symmetry |
| waktu merespon | 30 (Typ.)(Tr+Td) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| Modus operasi | IPS, Normally Black, Transmissive |
| ketebalan pelat | 0.40+0.40 mm |
| transmisi | 6.2% (Typ.) |
| warna pendukung | 16.7M 60% NTSC |
| sumber cahaya | No B/L |
| berat | 85.0g (Max.) |
| dirancang untuk | Pad & Tablet |
| kecepatan bingkai | 60Hz |
| panel sentuh | Without |
| detail d-ic | COG Built-in 1 source chips |
| tipe antarmuka | MIPI (4 data lanes) , 39 pins Connector |
| Sumber Daya listrik | 3.3V (Typ.) |
| lingkungan | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
