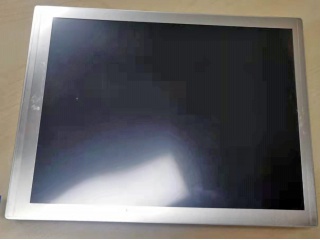

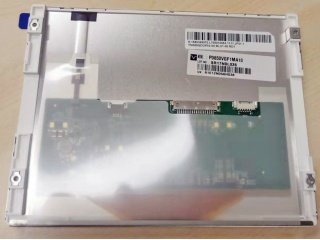

| Nomor Bagian | P0650VGF1MA10 |
| Merek | TIANMA |
| Ukuran | 6.5 |
| Aplikasi | Industrial Outdoor H |
| Resolusi | 640×480 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 900:1 |
| Warna | 262K/16.7M |
| Lampu latar | 6S2P |
| Antarmuka | LVDS |
| merek panel | TIANMA |
| model panel | P0650VGF1MA10 |
| ukuran panel | 6.5" |
| tipe panel | a-Si TFT-LCD, LCM |
| resolusi | 640(RGB)×480, VGA, 122PPI |
| format piksel | RGB Vertical Stripe |
| area tampilan | 132.48(W)×99.36(H) mm |
| bukaan bezel | 135.48(W)×102.36(H) mm |
| ukuran garis besar | 153(W)×118(H) ×11.2(D) mm |
| permukaan | Antiglare |
| kecerahan | 800 cd/m² (Typ.) |
| rasio kontras | 900:1 (Typ.) (TM) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| mode tampilan | SFT, Normally Black, Transmissive |
| tampilan terbaik di | Symmetry |
| waktu merespon | 30 (Typ.)(Tr+Td) |
| menampilkan warna | 262K/16.7M 70% NTSC |
| jenis lampu | 6S2P WLED , 70K hours , With LED Driver |
| frekuensi | 60Hz |
| layar sentuh | Without |
| berat panel | TBD |
| aplikasi | Industrial Outdoor High Brightness Automotive Display |
| antarmuka sinyal | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| tegangan masukan | 3.3V (Typ.) |
| lingkungan | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| DJ065NA-01C | Innolux | 6.5 | |
| L5F30818P03 | SONY | 6.5 | 800×480 |
| L5F30947T00 | Epson | 6.5 | 800×480 |
| L5F30947T0A | Epson | 6.5 | 800×480 |
| LB065WQ3-TD02 | LG Display | 6.5 | 400×240 |
| LQ065T9DZ03 | SHARP | 6.5 | 400×240 |
| LQ065Y5DG01 | SHARP | 6.5 | 800×480 |
| LQ065Y5DG03 | SHARP | 6.5 | 800×480 |
| LQ065Y5DZ01 | SHARP | 6.5 | 800×480 |
| LTA065B0F0F | TOSHIBA | 6.5 | 800×480 |
