| Nomor Bagian | NV156FHM-NY8 |
| Merek | BOE |
| Ukuran | 15.6 |
| Aplikasi | Laptop Gaming |
| Resolusi | 1920×1080 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 1.06B |
| Lampu latar | 10S5P |
| Antarmuka | eDP |
| pabrikan | BOE |
| ukuran layar | 15.6 inch |
| nomor piksel | 1920(RGB)×1080 (FHD) 141PPI |
| area aktif (mm) | 344.16 × 193.59 (H×V) |
| area bezel (mm) | - |
| pencahayaan | 300 cd/m² (Typ.) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| pemandangan bagus di | Symmetry |
| kedalaman warna | 1.06B 100% sRGB |
| bentuk garis besar | Slim (PCBA Flat, T≤3.2mm) |
| tingkat penyegaran | 165Hz |

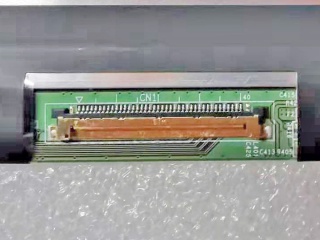

| jenis sinyal | eDP (4 Lanes) , eDP1.4 , HBR2 (5.4G/lane) , 40 pins Connector |
| sumber tegangan | 3.3V (Typ.) |
| maks. peringkat | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| nama model | NV156FHM-NY8 (BOE0998) |
| tipe layar | LCM , a-Si TFT-LCD |
| pengaturan | RGB Vertical Stripe |
| garis besar (mm) | 350.66 × 214.75 × 2.6 (H×V×D) |
| perlakuan | Antiglare, Hard coating (3H) |
| rasio kontras | 1000 : 1 (Typ.) (TM) |
| tanggapan | 9 (Typ.)(Tr+Td); 8 (Typ.)(G to G) ms |
| mode kerja | HADS, Normally Black, Transmissive |
| lampu latar | 10S5P WLED , 15K hours , With LED Driver |
| digunakan untuk | Laptop Gaming |
| layar sentuh | Without |
| B156HB01 V0 | AUO | 15.6 | 1920×1080 |
| B156HTN04.0 | AUO | 15.6 | 1920×1080 |
| LP156WF4-SLB2 | LG Display | 15.6 | 1920×1080 |
| LTN156AT20-W01 | Samsung | 15.6 | 1366×768 |
| LTN156AT32-401 | Samsung | 15.6 | 1366×768 |
| LTN156HT02-B01 | Samsung | 15.6 | 1920×1080 |
| NV156FHM-N41 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N42 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N43 | BOE | 15.6 | 1920×1080 |
