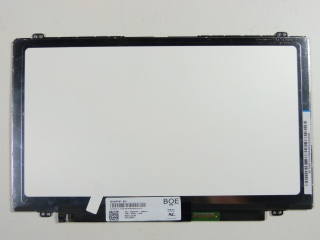

| Nomor Bagian | NV140FHM-A20 |
| Merek | BOE |
| Ukuran | 14.0 |
| Aplikasi | Laptop |
| Resolusi | 1920×1080 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 262K |
| Lampu latar | 9S5P |
| Antarmuka | eDP |
| merek panel | BOE |
| ukuran panel | 14.0" |
| resolusi | 1920(RGB)×1080, FHD, 157PPI |
| area tampilan | 309.31(W)×173.99(H) mm |
| ukuran garis besar | 326.18(W)×205.1(H) ×5.2(D) mm |
| kecerahan | 270 cd/m² (Typ.) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| tampilan terbaik di | Symmetry |
| menampilkan warna | 262K 72% NTSC |
| frekuensi | 60Hz |
| gaya bentuk | Flat (PCBA Flat, T3.4~4.0mm) |
| antarmuka sinyal | eDP (2 Lanes) , 40 pins Connector |
| tegangan masukan | 3.3V (Typ.) |
| lingkungan | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |

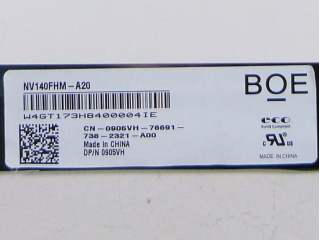

| model panel | NV140FHM-A20 (BOE0652) |
| tipe panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| bukaan bezel | - |
| permukaan | Hard coating (7H) |
| rasio kontras | 800:1 (Typ.) (TM) |
| mode tampilan | ADS, Normally Black, Transmissive |
| waktu merespon | 30 (Typ.)(Tr+Td) |
| jenis lampu | 9S5P WLED , 15K hours , With LED Driver |
| layar sentuh | PCAP, Optical Bonding |
| aplikasi | Laptop |
