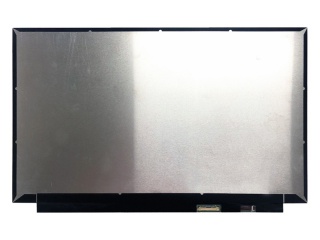

| Nomor Bagian | NV133FHM-N56 |
| Merek | BOE |
| Ukuran | 13.3 |
| Aplikasi | Laptop |
| Resolusi | 1920×1080 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 800:1 |
| Warna | 262K |
| Lampu latar | 10S4P |
| Antarmuka | eDP |
| pabrikan | BOE |
| nama model | NV133FHM-N56 (BOE0736) |
| ukuran layar | 13.3 inch |
| tipe layar | LCM , a-Si TFT-LCD |
| nomor piksel | 1920(RGB)×1080 (FHD) 166PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 293.76 × 165.24 (H×V) |
| garis besar (mm) | 299.96 × 186.92 × 2.1 (H×V×D) |
| area bezel (mm) | - |
| perlakuan | Antiglare |
| pencahayaan | 300 cd/m² (Typ.) |
| rasio kontras | 800 : 1 (Typ.) (TM) |
| sudut pandang | 80/80/80/80 (Typ.)(CR≥10) |
| tanggapan | 30 (Typ.)(Tr+Td) ms |
| pemandangan bagus di | Symmetry |
| mode kerja | ADS, Normally Black, Transmissive |
| kedalaman warna | 262K 100% sRGB |
| lampu latar | 10S4P WLED , 15K hours , With LED Driver |
| bentuk garis besar | Slim (PCBA Flat, T≤3.2mm) |
| digunakan untuk | Laptop |
| tingkat penyegaran | 60Hz |
| layar sentuh | Without |
| jenis sinyal | eDP (2 Lanes) , 30 pins Connector |
| sumber tegangan | 3.3V (Typ.) |
| maks. peringkat | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
