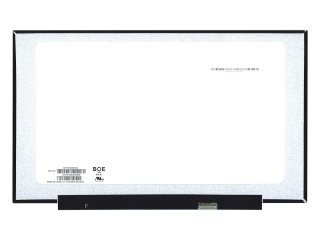

| Nomor Bagian | NT173WDM-N25 |
| Merek | BOE |
| Ukuran | 17.3 |
| Aplikasi | Laptop |
| Resolusi | 1600×900 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | 10S5P |
| Antarmuka | eDP |
| merek panel | BOE |
| model panel | NT173WDM-N25 (BOE0954) |
| ukuran panel | 17.3" |
| tipe panel | a-Si TFT-LCD, LCM |
| resolusi | 1600(RGB)×900, HD+, 106PPI |
| format piksel | RGB Vertical Stripe |
| area tampilan | 382.08(W)×214.92(H) mm |
| bukaan bezel | - |
| ukuran garis besar | 389.88(W)×236.52(H) ×3.5(D) mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 250 cd/m² (Typ.) |
| rasio kontras | 500:1 (Typ.) (TM) |
| sudut pandang | 45/45/20/40 (Min.)(CR≥10) |
| mode tampilan | TN, Normally White, Transmissive |
| tampilan terbaik di | 6 o'clock |
| waktu merespon | 12 (Typ.)(Tr+Td) |
| menampilkan warna | 262K 60% NTSC |
| jenis lampu | 10S5P WLED , 15K hours , With LED Driver |
| frekuensi | 60Hz |
| layar sentuh | Without |
| gaya bentuk | Flat (PCBA Flat, T3.4~4.0mm) |
| aplikasi | Laptop |
| antarmuka sinyal | eDP (1 Lane) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| tegangan masukan | 3.3V (Typ.) |
| lingkungan | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
