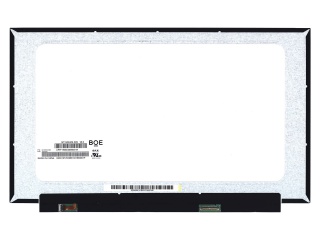

| Nomor Bagian | NT156WHM-N35 |
| Merek | BOE |
| Ukuran | 15.6 |
| Aplikasi | Laptop |
| Resolusi | 1366×768 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 400:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | eDP |
| pabrikan | BOE |
| ukuran layar | 15.6 inch |
| nomor piksel | 1366(RGB)×768 (WXGA) 100PPI |
| area aktif (mm) | 344.232 × 193.536 (H×V) |
| area bezel (mm) | - |
| pencahayaan | 220 cd/m² (Typ.) |
| sudut pandang | 45/45/20/40 (Typ.)(CR≥10) |
| pemandangan bagus di | 6 o'clock |
| kedalaman warna | 262K 45% NTSC |
| bentuk garis besar | Slim (PCBA Flat, T≤3.2mm) |
| tingkat penyegaran | 60Hz |
| jenis sinyal | eDP (1 Lane) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| sumber tegangan | 3.3V (Typ.) |
| maks. peringkat | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| nama model | NT156WHM-N35 |
| tipe layar | LCM , a-Si TFT-LCD |
| pengaturan | RGB Vertical Stripe |
| garis besar (mm) | 350.66 × 216.25 × 3.2 (H×V×D) |
| perlakuan | Hard coating (3H) |
| rasio kontras | 400 : 1 (Typ.) (TM) |
| tanggapan | 12 (Typ.)(Tr+Td) ms |
| mode kerja | TN, Normally White, Transmissive |
| lampu latar | WLED , 15K hours , With LED Driver |
| digunakan untuk | Laptop |
| layar sentuh | Without |
| B156XTN03.1 | AUO | 15.6 | 1366×768 |
| HB156WX1-100 | BOE | 15.6 | 1366×768 |
| LP156WH1-TLA1 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLRA | LG Display | 15.6 | 1366×768 |
| LTN156AT05-H01 | Samsung | 15.6 | 1366×768 |
| NT156WHM-N10 | BOE | 15.6 | 1366×768 |
| NT156WHM-N12 | BOE | 15.6 | 1366×768 |
| NT156WHM-N33 | BOE | 15.6 | 1366×768 |
| NT156WHM-N42 | BOE | 15.6 | 1366×768 |
| NT156WHM-N50 | BOE | 15.6 | 1366×768 |
