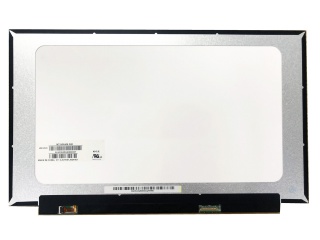

| Nomor Bagian | NT156WHM-N30 |
| Merek | BOE |
| Ukuran | 15.6 |
| Aplikasi | Laptop |
| Resolusi | 1366×768 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 400:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | eDP |
| merek | BOE |
| model | NT156WHM-N30 |
| ukuran diagonal | 15.6 inch |
| jenis | a-Si TFT-LCD, LCM |
| format piksel | 1366(RGB)×768 [WXGA] 100PPI |
| konfigurasi | RGB Vertical Stripe |
| daerah aktif | 344.232(H)×193.536(V) mm |
| garis besar redup. | 350.66(H)×216.25(V) ×3.2(D) mm |
| daerah bezel | - |
| perlakuan | Hard coating (3H) |
| pencahayaan | - |
| rasio kontras | 400:1 (Typ.) (TM) |
| arah pandangan | 6 o'clock |
| waktu merespon | 12 (Typ.)(Tr+Td) |
| sudut pandang | 45/45/20/40 (Typ.)(CR≥10) |
| Modus operasi | TN, Normally White, Transmissive |
| warna pendukung | 262K |
| sumber cahaya | WLED , 15K hours , With LED Driver |
| gaya bentuk | Slim (PCBA Flat, T≤3.2mm) |
| dirancang untuk | Laptop |
| kecepatan bingkai | 60Hz |
| panel sentuh | Without |
| tipe antarmuka | eDP (1 Lane) , 30 pins Connector |
| Sumber Daya listrik | 3.3V (Typ.) |
| lingkungan | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
