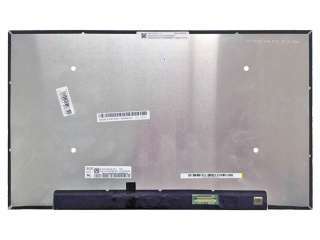

| Nomor Bagian | NT140FHM-N46 |
| Merek | BOE |
| Ukuran | 14.0 |
| Aplikasi | Laptop |
| Resolusi | 1920×1080 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 500:1 |
| Warna | 16.2M |
| Lampu latar | 11S4P |
| Antarmuka | eDP |
| pabrikan | BOE |
| ukuran layar | 14.0 inch |
| nomor piksel | 1920(RGB)×1080 (FHD) 157PPI |
| area aktif (mm) | 309.31 × 173.99 (H×V) |
| area bezel (mm) | - |
| pencahayaan | 220 cd/m² (Typ.) |
| sudut pandang | 45/45/20/40 (Typ.)(CR≥10) |
| pemandangan bagus di | 6 o'clock |
| kedalaman warna | 16.2M 45% NTSC |
| bentuk garis besar | Slim (PCBA Bent, T≤3.0mm) |
| tingkat penyegaran | 60Hz |
| jenis sinyal | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| sumber tegangan | 3.3V (Typ.) |
| maks. peringkat | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| nama model | NT140FHM-N46 (BOE08D9) |
| tipe layar | LCM , a-Si TFT-LCD |
| pengaturan | RGB Vertical Stripe |
| garis besar (mm) | 315.81 × 186.05 × 5 (H×V×D) |
| perlakuan | Antiglare, Hard coating (3H) |
| rasio kontras | 500 : 1 (Typ.) (TM) |
| tanggapan | 12 (Typ.)(Tr+Td) ms |
| mode kerja | TN, Normally White, Transmissive |
| lampu latar | 11S4P WLED , 15K hours , With LED Driver |
| digunakan untuk | Laptop |
| layar sentuh | Without |
| B140RTN03.0 | AUO | 14.0 | 1600×900 |
| B140XTN02.3 | AUO | 14.0 | 1366×768 |
| HB140WX1-100 | BOE | 14.0 | 1366×768 |
| LP140WH1-TLB1 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLF3 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLS1 | LG Display | 14.0 | 1366×768 |
| LTN140AT21-B01 | Samsung | 14.0 | 1366×768 |
| N140B6-L02 | Innolux | 14.0 | 1366×768 |
| N140BGE-E33 | Innolux | 14.0 | 1366×768 |
| N140BGE-L32 | Innolux | 14.0 | 1366×768 |
