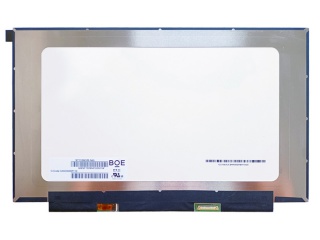

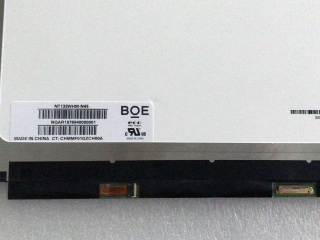

| Nomor Bagian | NT133WHM-N45 |
| Merek | BOE |
| Ukuran | 13.3 |
| Aplikasi | Laptop |
| Resolusi | 1366×768 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | 8S4P |
| Antarmuka | eDP |
| pabrikan | BOE |
| nama model | NT133WHM-N45 (BOE07AD) 6 Compatible |
| ukuran layar | 13.3 inch |
| tipe layar | LCM, a-Si TFT-LCD |
| nomor piksel | 1366(RGB)×768 (WXGA) 118PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 293.42 × 164.97 (H×V) |
| garis besar (mm) | 300.26 × 187.27 × 3 (H×V×D) |
| area bezel (mm) | - |
| perlakuan | Antiglare, Hard coating (3H) |
| pencahayaan | 220 cd/m² (Typ.) |
| rasio kontras | 500 : 1 (Typ.) (TM) |
| sudut pandang | 45/45/20/40 (Typ.)(CR≥10) |
| tanggapan | 12 (Typ.)(Tr+Td) ms |
| pemandangan bagus di | 6 o'clock |
| mode kerja | TN, Normally White, Transmissive |
| kedalaman warna | 262K 45% NTSC |
| lampu latar | 8S4P WLED , 15K hours , With LED Driver |
| bentuk garis besar | Slim (PCBA Flat, T≤3.2mm) |
| digunakan untuk | Laptop |
| tingkat penyegaran | 60Hz |
| layar sentuh | Without |
| jenis sinyal | eDP (1 Lane) , eDP1.2 , HBR1 (2.7G/lane) , Connector 30 pins |
| sumber tegangan | 3.3V (Typ.) |
| maks. peringkat | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
