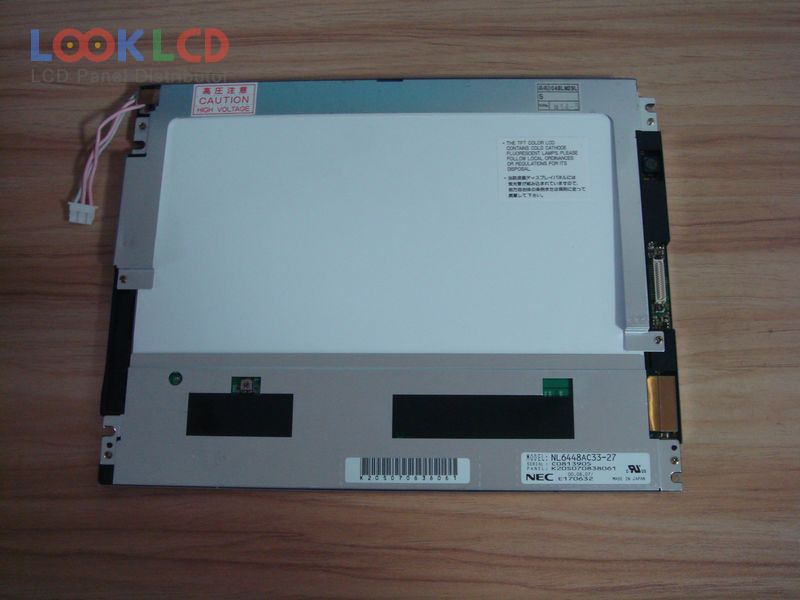

| Nomor Bagian | NL6448AC33-27 |
| Merek | NLT |
| Ukuran | 10.4 |
| Aplikasi | IA |
| Resolusi | 640×480 |
| Komposisi | LCM |
| Kecerahan | 250 |
| CR | 300:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antarmuka | TTL |
| merek panel | NEC |
| model panel | NL6448AC33-27 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 10.4 inch |
| resolusi | 640(RGB)×480 , VGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 211.2×158.4 mm |
| garis besar | 243×185.1×11.5 mm |
| permukaan | |
| kecerahan | 250 cd/m² (Typ.) |
| rasio kontras | 300:1 (Typ.) |
| menampilkan warna | 262K (6-bit), CIE193143% |
| waktu merespon | 15/60 (Typ.)(Tr/Td) |
| sudut pandang | 50/50/50/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 2 pcsCCFLEmbedded (Inverter) |
| antarmuka sinyal | CMOS (1 ch, 6-bit), 31 pins |
| tegangan masukan | 3.3/5.0V (Typ.) |
| aplikasi | IA |
