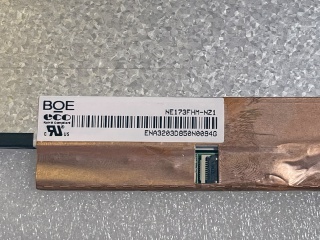

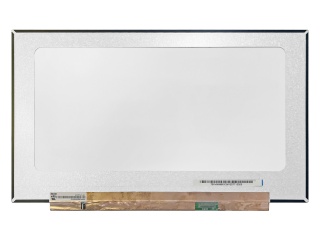

| Nomor Bagian | NE173FHM-NZ1 |
| Merek | BOE |
| Ukuran | 17.3 |
| Aplikasi | Laptop Gaming |
| Resolusi | 1920×1080 |
| Komposisi | Oxide TFT-LCD, LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | 10S6P |
| Antarmuka | eDP |
| merek panel | BOE |
| model panel | NE173FHM-NZ1 (BOE0884) |
| ukuran panel | 17.3" |
| tipe panel | Oxide TFT-LCD, LCM |
| resolusi | 1920(RGB)×1080, FHD, 127PPI |
| format piksel | RGB Vertical Stripe |
| area tampilan | 381.888(W)×214.812(H) mm |
| bukaan bezel | - |
| ukuran garis besar | 389.89(W)×238.31(H) ×3.5(D) mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 300 cd/m² (Typ.) |
| rasio kontras | 1000:1 (Typ.) (TM) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| mode tampilan | ADS, Normally Black, Transmissive |
| tampilan terbaik di | Symmetry |
| waktu merespon | 4 (Typ.)(G to G) |
| menampilkan warna | 16.7M 100% sRGB |
| jenis lampu | 10S6P WLED , 15K hours , With LED Driver |
| frekuensi | 240Hz |
| layar sentuh | Without |
| gaya bentuk | Slim (PCBA Flat, T≤3.2mm) |
| aplikasi | Laptop Gaming |

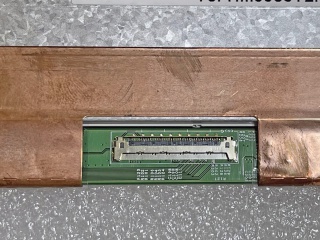

| antarmuka sinyal | eDP (4 Lanes) , eDP1.4 , HBR2 (5.4G/lane) , 40 pins Connector |
| tegangan masukan | 3.3V (Typ.) |
| lingkungan | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
