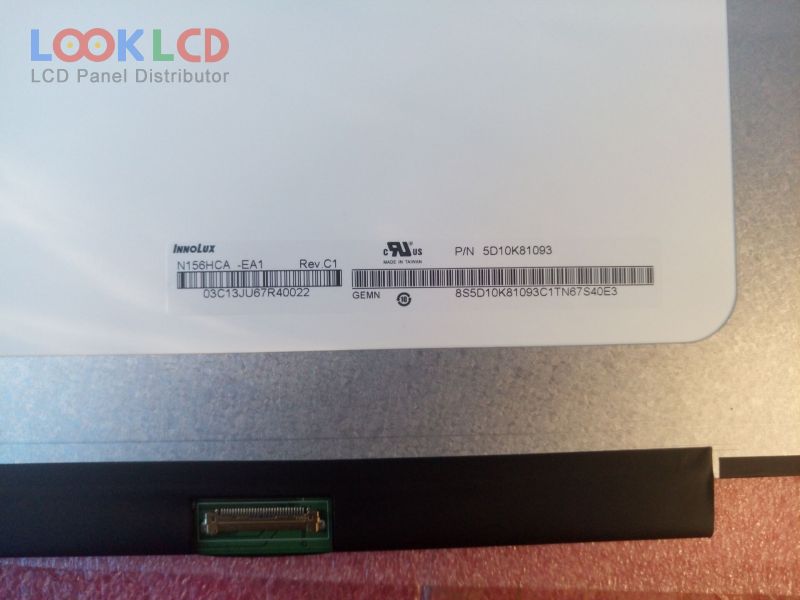

| Nomor Bagian | N156HCA-EA1 |
| Merek | Innolux |
| Ukuran | 15.6 |
| Aplikasi | NBPC |
| Resolusi | 1920×1080 |
| Komposisi | LCM |
| Kecerahan | 300 |
| CR | 700:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | eDP |
| merek panel | INNOLUX |
| model panel | N156HCA-EA1 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 15.6 inch |
| resolusi | 1920(RGB)×1080 , FHD |
| mode tampilan | AAS, Normally Black, Transmissive |
| daerah aktif | 344.16×193.59 mm |
| garis besar | 350.16×216×3.2 mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 300 cd/m² (Typ.) |
| rasio kontras | 700:1 (Typ.) |
| menampilkan warna | 262K (6-bit), CIE193172% |
| waktu merespon | 14/11 (Typ.)(Tr/Td) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antarmuka sinyal | eDP (2 Lanes), 30 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | NBPC |
| LP156WHB-TPA1 | LG Display | 15.6 | 1366×768 |
| LTN156FL02-L01 | Samsung | 15.6 | 3840×2160 |
| N156HCA-EA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EA2 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EAL Rev.C1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-L11 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LB1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LG1 | Innolux | 15.6 | 1920×1080 |
| B156HTB01.0 | AUO | 15.6 | 1920×1080 |
| B170PW06 V3 | AUO | 17.0 | 1440×900 |
| LP104V1 | LG Display | 10.4 | 640×480 |
| LP141XA-A1 | LG Display | 14.1 | 1024×768 |
| LP173WF1-TLA2 | LG Display | 17.3 | 1920×1080 |
| LP173WF1-TLB3 | LG Display | 17.3 | 1920×1080 |
| LQ164M1LA4A | SHARP | 16.4 | 1920×1080 |
| LTN150XG-L05 | Samsung | 15.0 | 1024×768 |
| N150P3-L01 | IDTech | 15.0 | 1400×1050 |
| N184H3-L02 | Innolux | 18.4 | 1920×1080 |
