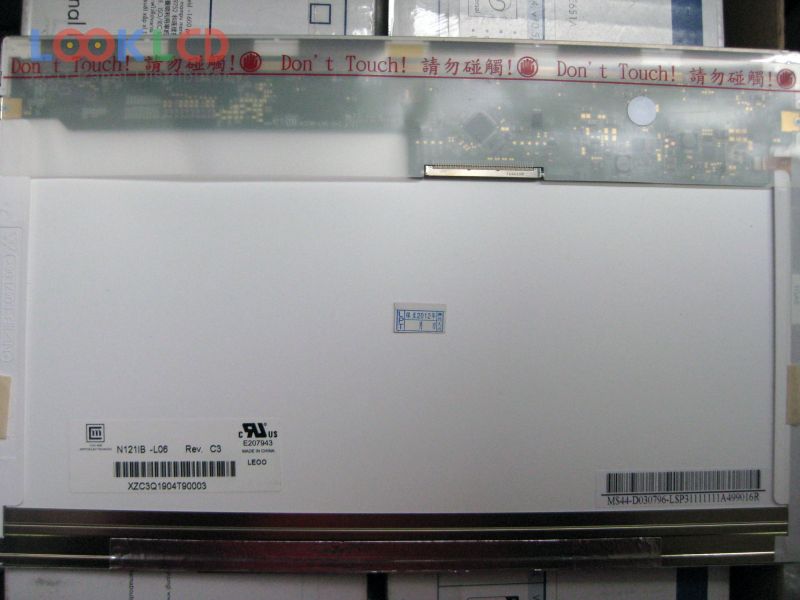

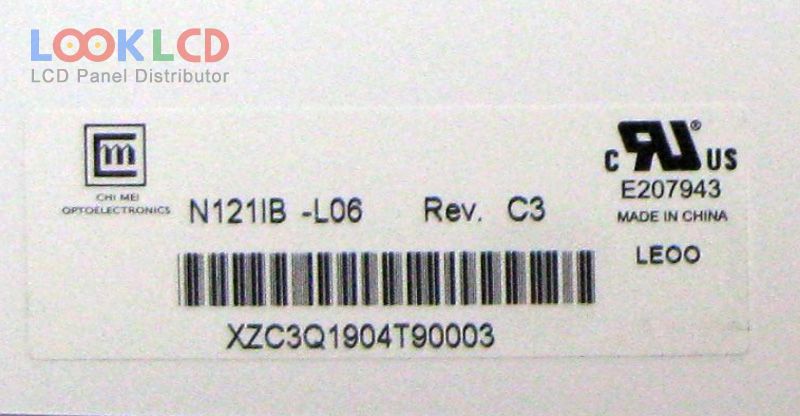

| Nomor Bagian | N121IB-L06 |
| Merek | Innolux |
| Ukuran | 12.1 |
| Aplikasi | NBPC |
| Resolusi | 1280×800 |
| Komposisi | LCM |
| Kecerahan | 220 |
| CR | 600:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek panel | CMO |
| model panel | N121IB-L06 5 Compatible model |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 12.1 inch |
| resolusi | 1280(RGB)×800 , WXGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 261.12×163.2 mm |
| garis besar | 275.8×178×5.3 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | Glare (Haze 0%), Hard coating (3H) |
| kecerahan | 220 cd/m² (Typ.) |
| rasio kontras | 600:1 (Typ.) |
| menampilkan warna | 262K (6-bit), CIE193140% |
| waktu merespon | 3/7 (Typ.)(Tr/Td) |
| sudut pandang | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 7S6PWLEDEmbedded (LED Driver) |
| antarmuka sinyal | LVDS (1 ch, 6-bit), 40 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | NBPC |
