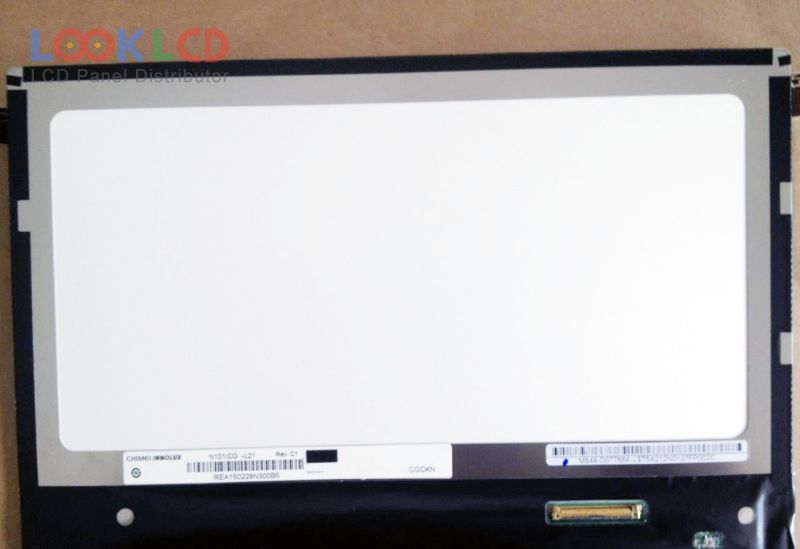

N101ICG-L21 Rev.C1

N101ICG-L21 Rev.C1
N101ICG-L21 Rev.C1 thumb
Merek
Innolux
Ukuran
10.1
Aplikasi
PAD
Resolusi
1280×800
Komposisi
LCM
Kecerahan
350
CR
800:1
Warna
262K
Lampu latar
WLED
Antarmuka
LVDS
In Stock
3180
Spesifikasi

Nomor Bagian N101ICG-L21 Rev.C1
MerekInnolux
Ukuran10.1
AplikasiPAD
Resolusi1280×800
KomposisiLCM
Kecerahan350
CR800:1
Warna262K
Lampu latarWLED
AntarmukaLVDS
merek panelCMO
model panelN101ICG-L21 Rev.C1 2 Compatible model
tipe panel a-Si TFT-LCD , LCM
ukuran panel10.1 inch
resolusi1280(RGB)×800 , WXGA
mode tampilanAAS, Normally Black, Transmissive
daerah aktif216.96×135.6 mm
garis besar227.42×147.69×4.85 mm
permukaanGlare (Haze 0%), Hard coating (3H)
kecerahan350 cd/m² (Typ.)
rasio kontras800:1 (Typ.)
menampilkan warna262K (6-bit), CIE193150%
waktu merespon14/11 (Typ.)(Tr/Td)
sudut pandang85/85/85/85 (Typ.)(CR≥10)(L/R/U/D)
frekuensi60Hz
jenis lampu3 stringsWLEDEmbedded (LED Driver)
antarmuka sinyalLVDS (1 ch, 6-bit), 40 pins
tegangan masukan3.3V (Typ.)
aplikasiPAD
Model Keluarga
BP101WX1-210 BOE 10.1 1280×800
HSD101PWW1-B00 HannStar 10.1 1280×800
HSD101PWW1-F01 HannStar 10.1 1280×800
HSD101PWW1-G10 HannStar 10.1 1280×800
N101ICG-L11 Innolux 10.1 1280×800
N101ICG-L21 Rev.A1 Innolux 10.1 1280×800
N101ICG-L21 Rev.B1 Innolux 10.1 1280×800
N101ICG-L21 Rev.C1 Innolux 10.1 1280×800
N101ICG-L21 Rev.C2 Innolux 10.1 1280×800
VVX10F002A00 Panasonic 10.1 1920×1200
