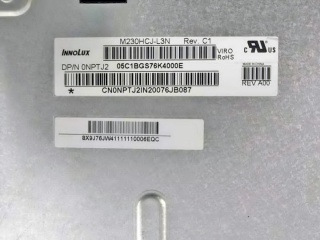

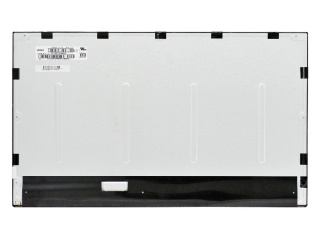

| Nomor Bagian | M230HCJ-L3N Rev.C1 |
| Merek | Innolux |
| Ukuran | 23.0 |
| Aplikasi | Desktop Monitor |
| Resolusi | 1920×1080 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | 4 |
| Antarmuka | LVDS |
| merek panel | Innolux |
| model panel | M230HCJ-L3N Rev.C1 |
| ukuran panel | 23.0" |
| tipe panel | a-Si TFT-LCD, LCM |
| resolusi | 1920(RGB)×1080, FHD, 95PPI |
| format piksel | RGB Vertical Stripe |
| area tampilan | 509.184(W)×286.416(H) mm |
| bukaan bezel | 512.38(W)×289.62(H) mm |
| ukuran garis besar | 522.38(W)×305.62(H) mm |
| permukaan | Antiglare (Haze 25%), Hard coating (3H) |
| kecerahan | 250 cd/m² (Typ.) |
| rasio kontras | 1000:1 (Typ.) (TM) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10) |
| mode tampilan | AAS, Normally Black, Transmissive |
| tampilan terbaik di | Symmetry |
| waktu merespon | 8/7 (Typ.)(Tr/Td) |
| menampilkan warna | 16.7M 72% NTSC |
| jenis lampu | 4 strings WLED , Without Driver |
| frekuensi | 60Hz |
| layar sentuh | Without |
| berat panel | 1.96/2.06/2.23Kgs (Min./Typ./Max.) |
| aplikasi | Desktop Monitor |
| antarmuka sinyal | LVDS (2 ch, 8-bit) , 30 pins Connector |
| tegangan masukan | 5.0V (Typ.) |
| lingkungan | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| LC230EUE-SEA1 | LG Display | 23.0 | 1920×1080 |
| LC230WX3-SLA1 | LG Display | 23.0 | 1366×768 |
| LM230WF3-SSA1 | LG Display | 23.0 | 1920×1080 |
| LM230WF5-TLD2 | LG Display | 23.0 | 1920×1080 |
| LM230WF5-TLD5 | LG Display | 23.0 | 1920×1080 |
| LTA230A172F | TOSHIBA | 23.0 | 1280×768 |
| LTM230HT01 | Samsung | 23.0 | 1920×1080 |
| LTM230HU01 | Samsung | 23.0 | 1920×1080 |
| M230HGE-L20 | Innolux | 23.0 | 1920×1080 |
| T230XW01 V2 | AUO | 23.0 | 1366×768 |
