Innolux M215H1-L03 lembar data, spesifikasi, stok, aplikasi www.looklcd-id.com
LookLCD LookLCD

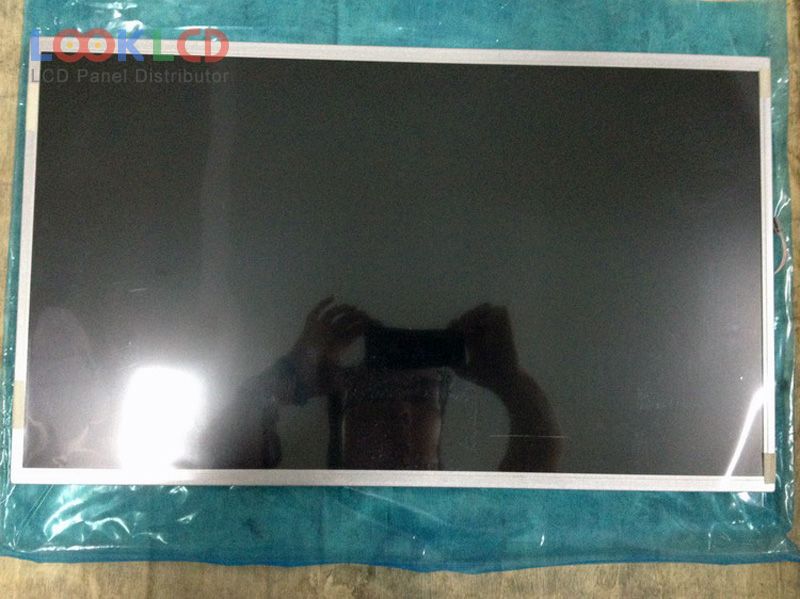

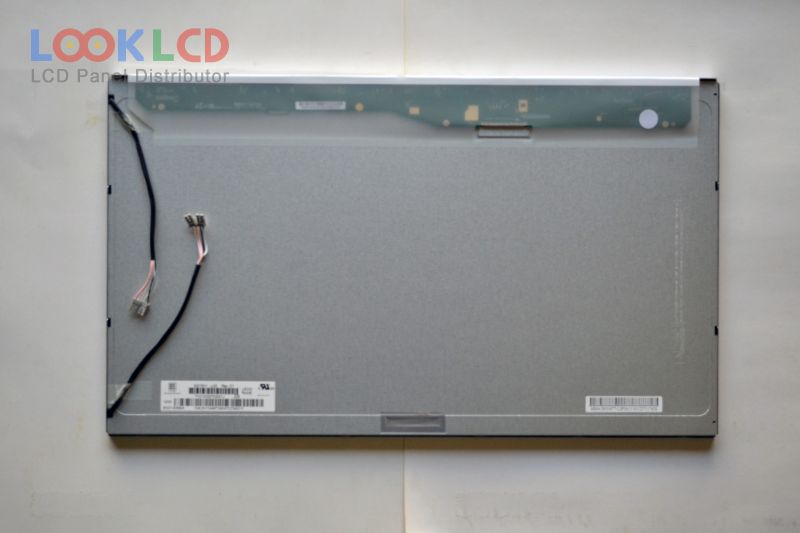

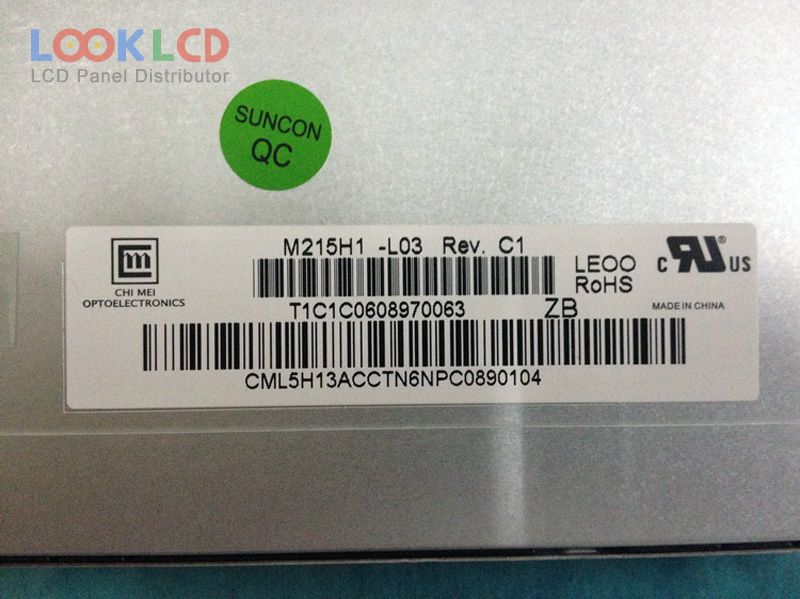

M215H1-L03

M215H1-L03
M215H1-L03
M215H1-L03
M215H1-L03 thumb M215H1-L03 thumb M215H1-L03 thumb
Merek
Innolux
Ukuran
21.5
Aplikasi
DMPC
Resolusi
1920×1080
Komposisi
LCM
Kecerahan
300
CR
1000:1
Warna
16.7M
Lampu latar
CCFL
Antarmuka
LVDS
In Stock
9665
Spesifikasi

Nomor Bagian M215H1-L03
MerekInnolux
Ukuran21.5
AplikasiDMPC
Resolusi1920×1080
KomposisiLCM
Kecerahan300
CR1000:1
Warna16.7M
Lampu latarCCFL
AntarmukaLVDS
merek panelCMO
model panelM215H1-L03
tipe panel a-Si TFT-LCD , LCM
ukuran panel21.5 inch
resolusi1920(RGB)×1080 , FHD
mode tampilanTN, Normally White, Transmissive
daerah aktif476.64×268.11 mm
garis besar495.6×292.2×16.85 mm
permukaanAntiglare (Haze 25%), Hard coating (3H)
kecerahan300 cd/m² (Typ.)
rasio kontras1000:1 (Typ.)
menampilkan warna16.7M (8-bit), CIE193172%
waktu merespon1.3/3.7 (Typ.)(Tr/Td)
sudut pandang85/85/80/80 (Typ.)(CR≥10)(L/R/U/D)
frekuensi60Hz
jenis lampu4 pcsCCFLWithout Driver
antarmuka sinyalLVDS (2 ch, 8-bit), 30 pins
tegangan masukan5.0V (Typ.)
aplikasiDMPC
