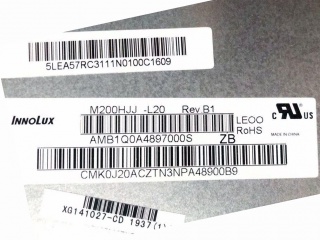

| Nomor Bagian | M200HJJ-L20 Rev.B1 |
| Merek | Innolux |
| Ukuran | 19.5 |
| Aplikasi | Desktop Monitor Indu |
| Resolusi | 1920×1080 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 3000:1 |
| Warna | 16.7M |
| Lampu latar | 9S4P |
| Antarmuka | LVDS |
| pabrikan | Innolux |
| ukuran layar | 19.5 inch |
| nomor piksel | 1920(RGB)×1080 (FHD) 112PPI |
| area aktif (mm) | 434.88 × 238.68 (H×V) |
| area bezel (mm) | 438.18 × 241.98 (H×V) |
| pencahayaan | 250 cd/m² (Typ.) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10) |
| pemandangan bagus di | Symmetry |
| kedalaman warna | 16.7M 72% NTSC |
| massa | 1.47±0.08Kgs |
| tingkat penyegaran | 60Hz |
| jenis sinyal | LVDS (2 ch, 8-bit) , 30 pins Connector |
| sumber tegangan | 5.0V (Typ.) |
| maks. peringkat | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| nama model | M200HJJ-L20 Rev.B1 |
| tipe layar | LCM , a-Si TFT-LCD |
| pengaturan | RGB Vertical Stripe |
| garis besar (mm) | 459.8 × 263 × 11.82 (H×V×D) |
| perlakuan | Antiglare (Haze 25%), Hard coating (3H) |
| rasio kontras | 3000 : 1 (Typ.) (TM) |
| tanggapan | 25 (Typ.)(Tr+Td) ms |
| mode kerja | MVA, Normally Black, Transmissive |
| lampu latar | 9S4P WLED , 30K hours , No Driver |
| digunakan untuk | Desktop Monitor Industrial |
| layar sentuh | Without |
