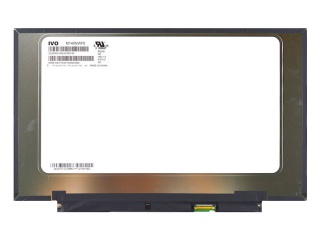

| Nomor Bagian | M140NWF5 R2 |
| Merek | IVO |
| Ukuran | 14.0 |
| Aplikasi | Laptop |
| Resolusi | 1920×1080 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 1200:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | eDP |
| merek | IVO |
| model | M140NWF5 R2 (IVO057D) |
| ukuran diagonal | 14.0 inch |
| jenis | a-Si TFT-LCD, LCM |
| format piksel | 1920(RGB)×1080 [FHD] 157PPI |
| konfigurasi | RGB Vertical Stripe |
| daerah aktif | 309.31(H)×173.99(V) mm |
| garis besar redup. | 315.81(H)×197.86(V) ×3(D) mm |
| daerah bezel | - |
| perlakuan | Antiglare, Hard coating (3H) |
| pencahayaan | 250 cd/m² (Typ.) |
| rasio kontras | 1200:1 (Typ.) (TM) |
| arah pandangan | Symmetry |
| waktu merespon | 30 (Typ.)(Tr+Td) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| Modus operasi | IPS, Normally Black, Transmissive |
| warna pendukung | 16.7M 45% NTSC |
| sumber cahaya | WLED , 15K hours , With LED Driver |
| gaya bentuk | Slim (PCBA Flat, T≤3.2mm) |
| dirancang untuk | Laptop |
| kecepatan bingkai | 60Hz |
| panel sentuh | Without |
| tipe antarmuka | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| Sumber Daya listrik | 3.3V (Typ.) |
| lingkungan | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 70 °C |
