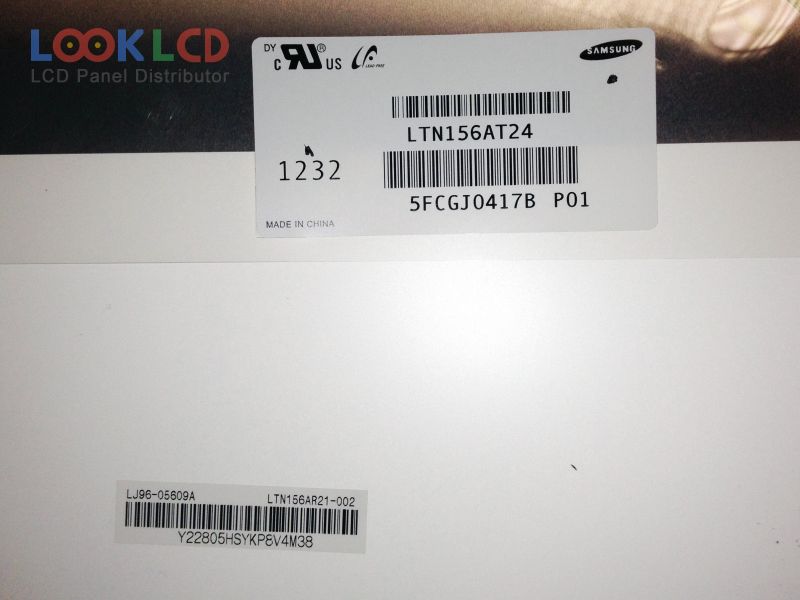

| Nomor Bagian | LTN156AT24-P01 |
| Merek | Samsung |
| Ukuran | 15.6 |
| Aplikasi | NBPC |
| Resolusi | 1366×768 |
| Komposisi | LCM |
| Kecerahan | 220 |
| CR | 400:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek panel | SAMSUNG |
| model panel | LTN156AT24-P01 16 Compatible model |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 15.6 inch |
| resolusi | 1366(RGB)×768 , WXGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 344.232×193.536 mm |
| garis besar | 359.3×209.5×5.5 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | Glare (Haze 0%), Hard coating (3H) |
| kecerahan | 220 cd/m² (Typ.) |
| rasio kontras | 400:1 (Typ.) |
| menampilkan warna | 262K (6-bit), CIE193160% |
| waktu merespon | 16 (Typ.)(Tr+Td) |
| sudut pandang | 45/45/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 4S1PWLEDEmbedded (LED Driver) |
| antarmuka sinyal | LVDS (1 ch, 6-bit), 40 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | NBPC |
