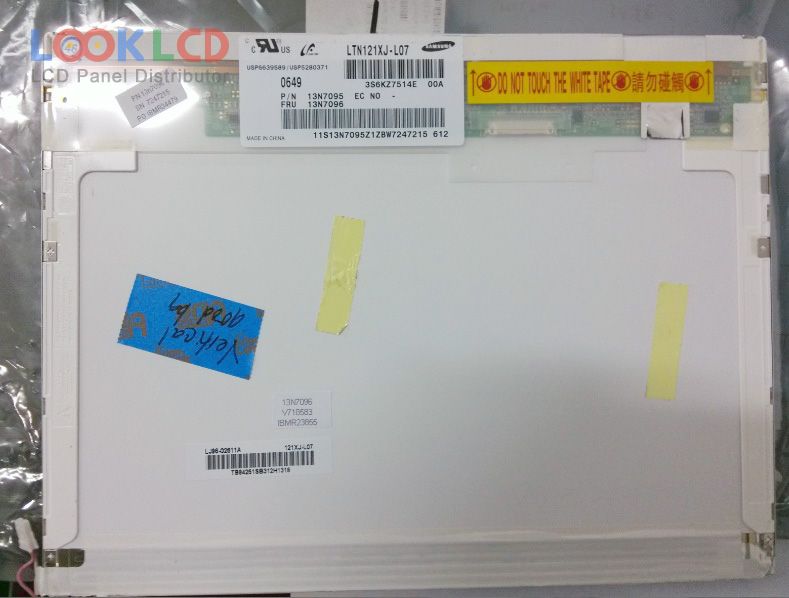

| Nomor Bagian | LTN121XJ-L07 |
| Merek | Samsung |
| Ukuran | 12.1 |
| Aplikasi | NBPC |
| Resolusi | 1024×768 |
| Komposisi | LCM |
| Kecerahan | 150 |
| CR | 300:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antarmuka | LVDS |
| merek panel | SAMSUNG |
| model panel | LTN121XJ-L07 6 Compatible model |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 12.1 inch |
| resolusi | 1024(RGB)×768 , XGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 245.76×184.32 mm |
| garis besar | 261×198×5 mm |
| permukaan | Antiglare (Haze 40%), Hard coating (2H) |
| kecerahan | 150 cd/m² (Typ.) |
| rasio kontras | 300:1 (Min.) |
| menampilkan warna | 262K (6-bit) |
| waktu merespon | 40 (Typ.)(Tr+Td) |
| sudut pandang | 40/40/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antarmuka sinyal | LVDS (1 ch, 6-bit), 20 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | NBPC |
