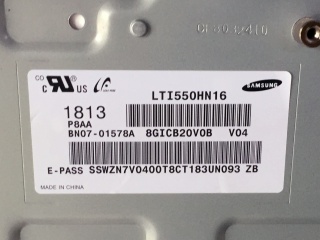

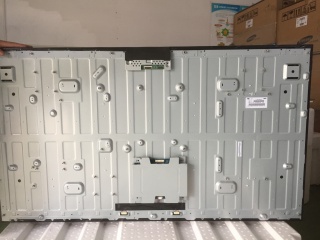

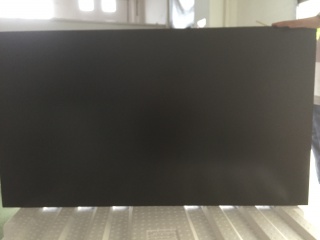

| Nomor Bagian | LTI550HN16 |
| Merek | SAMSUNG |
| Ukuran | 55 |
| Aplikasi | Video Wall |
| Resolusi | 1920×1080 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 4000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| pabrikan | SAMSUNG |
| nama model | LTI550HN16 |
| ukuran layar | 55 inch |
| tipe layar | LCM, a-Si TFT-LCD |
| nomor piksel | 1920(RGB)×1080 (FHD) 40PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 1209.6 × 680.4 (H×V) |
| garis besar (mm) | 1211.6 × 682.4 × 68.1 (H×V×D) |
| area bezel (mm) | - |
| perlakuan | Antiglare (Haze 25%), Hard coating (2H) |
| pencahayaan | 500 cd/m² (Typ.) |
| rasio kontras | 4000 : 1 (Typ.) (TM) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10) |
| tanggapan | 8 (Typ.)(G to G) ms |
| pemandangan bagus di | Symmetry |
| mode kerja | SVA, Normally Black, Transmissive |
| kedalaman warna | 16.7M 99% sRGB |
| lampu latar | WLED , 50K hours , With LED Driver |
| jahitan penyambungan | 2.0 mm (active to active seam) |
| digunakan untuk | Video Wall |
| tingkat penyegaran | 60Hz |
| layar sentuh | Without |
| jenis sinyal | LVDS (2 ch, 8-bit) , Connector 51 pins |
| sumber tegangan | 12.0V (Typ.) |
| maks. peringkat | Storage Temp.: -20 ~ 65 °C Operating Temp.: 0 ~ 50 °C |
