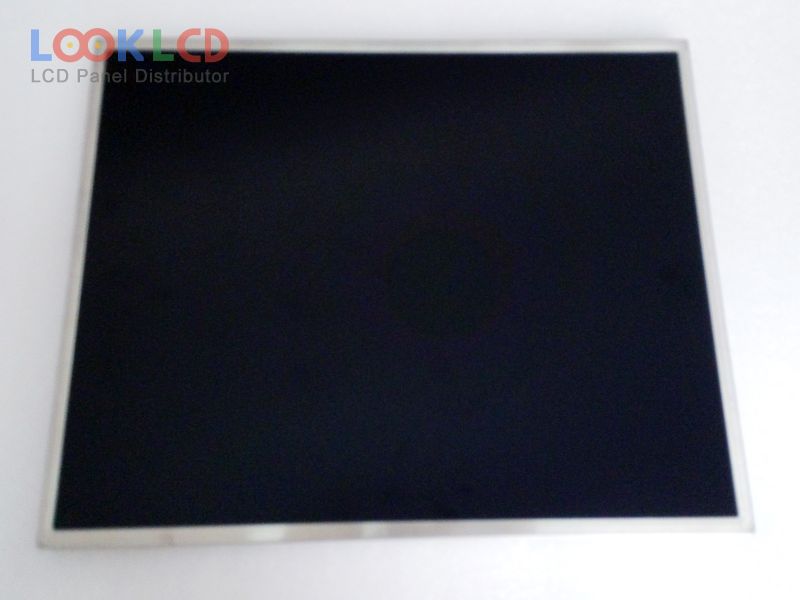

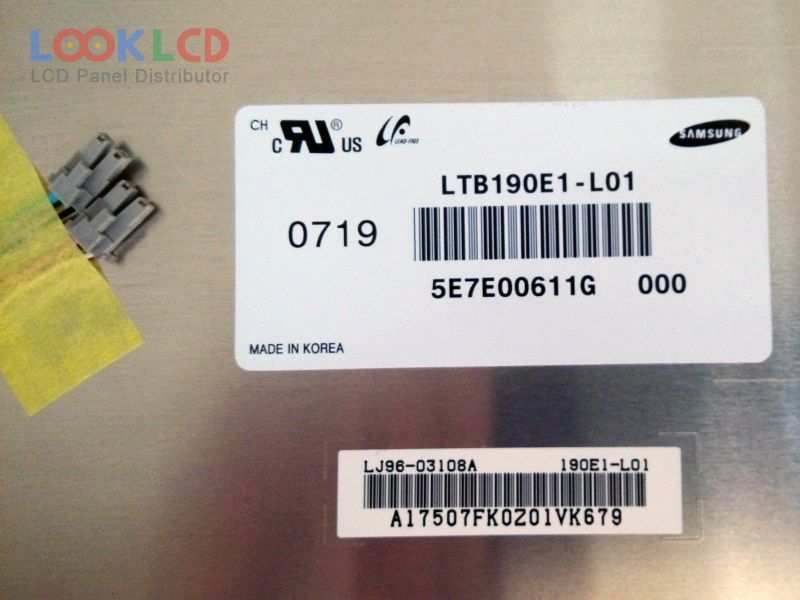

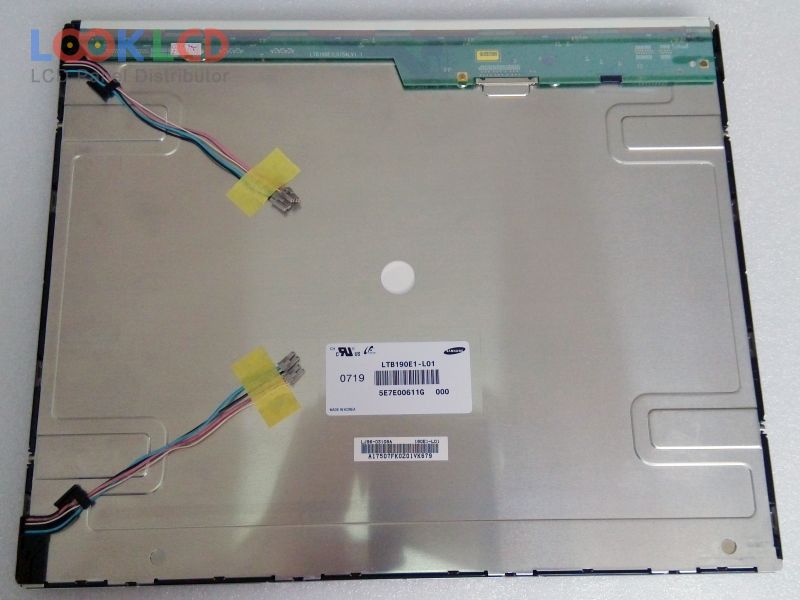

| Nomor Bagian | LTB190E1-L01 |
| Merek | Samsung |
| Ukuran | 19.0 |
| Aplikasi | IA |
| Resolusi | 1280×1024 |
| Komposisi | LCM |
| Kecerahan | 250 |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | CCFL |
| Antarmuka | LVDS |
| merek panel | SAMSUNG |
| model panel | LTB190E1-L01 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 19.0 inch |
| resolusi | 1280(RGB)×1024 , SXGA |
| mode tampilan | S-PVA, Normally Black, Transmissive |
| daerah aktif | 376.32×301.056 mm |
| garis besar | 396×324 mm |
| permukaan | |
| kecerahan | 250 cd/m² (Typ.) |
| rasio kontras | 1000:1 (Typ.) |
| menampilkan warna | 16.7M (8-bit), CIE193172% |
| waktu merespon | 20 (Typ.)(Tr+Td) |
| sudut pandang | 90/90/90/90 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 4 pcsCCFL |
| antarmuka sinyal | LVDS (2 ch, 8-bit) |
| tegangan masukan | 5.0V (Typ.) |
| roh: | |
| aplikasi | IA |
