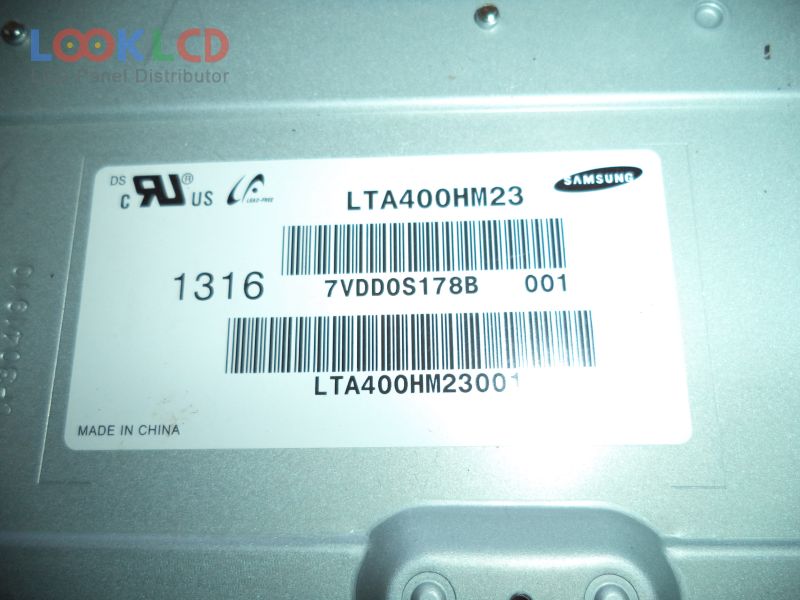

| Nomor Bagian | LTA400HM23 |
| Merek | Samsung |
| Ukuran | 40 |
| Aplikasi | LCTV |
| Resolusi | 1920×1080 |
| Komposisi | LCM |
| Kecerahan | 300 |
| CR | 5000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek panel | SAMSUNG |
| model panel | LTA400HM23 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 40 inch |
| resolusi | 1920×1080(RGB) , FHD |
| mode tampilan | S-PVA, Normally Black, Transmissive |
| daerah aktif | 885.6×498.15 mm |
| garis besar | 914.4×530.6 mm |
| permukaan | Antiglare (Haze 5.5%), Hard coating (2H) |
| kecerahan | 300 cd/m² (Typ.) |
| rasio kontras | 5000:1 (Typ.) |
| menampilkan warna | 16.7M (6-bit + Hi-FRC), CIE193170% |
| waktu merespon | 8 (Typ.)(G to G) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |

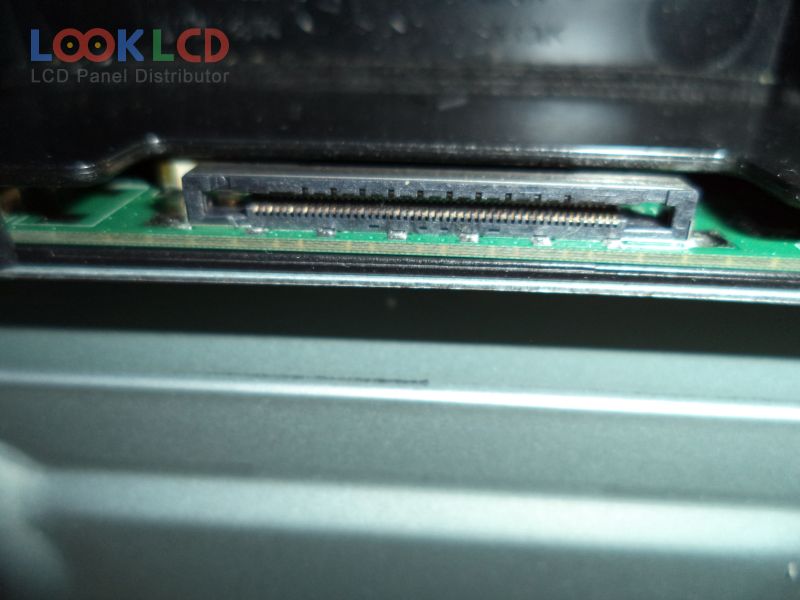

| antarmuka sinyal | LVDS (2 ch, 8-bit), 51 pins |
| tegangan masukan | 12.0V (Typ.) |
| aplikasi | LCTV |
