| Nomor Bagian | LSM315DP01-M01 |
| Merek | SAMSUNG |
| Ukuran | 32.0 |
| Aplikasi | Desktop Monitor Gami |
| Resolusi | 2560×1440 |
| Komposisi | a-Si TFT-LCD , CELL |
| Kecerahan | |
| CR | 3000:1 |
| Warna | 16.7M |
| Lampu latar | No |
| Antarmuka | eDP |
| merek | SAMSUNG |
| ukuran diagonal | 32.0 inch |
| format piksel | 2560(RGB)×1440 [Quad-HD] 93PPI |
| daerah aktif | 697.344(H)×392.256(V) mm |
| daerah bezel | - |
| pencahayaan | 0 cd/m² |
| arah pandangan | Symmetry |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10) |
| ketebalan pelat | 0.40+0.40 mm |
| warna pendukung | 16.7M 70% NTSC |
| berat | 900g (Typ.) |
| kecepatan bingkai | 144Hz |

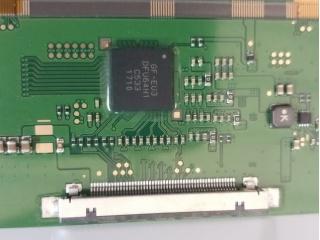

| detail d-ic | COF Built-in 8 source chips |
| tipe antarmuka | eDP (4 Lanes) , HBR2 (5.4G/lane) , 51 pins Connector |
| Sumber Daya listrik | 12.0V (Typ.) |
| lingkungan | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |

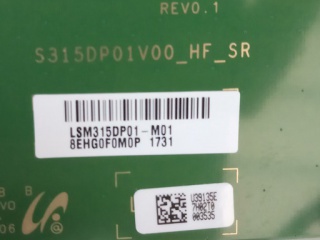

| model | LSM315DP01-M01 |
| jenis | a-Si TFT-LCD , CELL |
| konfigurasi | RGB Vertical Stripe |
| garis besar redup. | 708.944(H)×405.731(V) ×1.11(D) mm |
| perlakuan | Antiglare (Haze 25%) |
| rasio kontras | 3000:1 (Typ.) (TM) |
| waktu merespon | 22 (Typ.)(G to G) |
| Modus operasi | PVA, Normally Black, Transmissive |
| transmisi | 3.0% (Typ.)(with Polarizer) |
| sumber cahaya | No B/L |
| dirancang untuk | Desktop Monitor Gaming |
| panel sentuh | Without |
