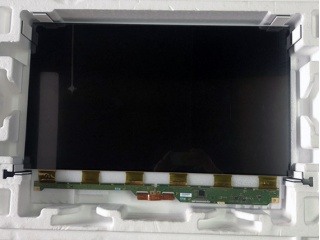

| Nomor Bagian | LSM270HP06-G01 |
| Merek | SAMSUNG |
| Ukuran | 27.0 |
| Aplikasi | Desktop Monitor Gami |
| Resolusi | 1920×1080 |
| Komposisi | a-Si TFT-LCD, CELL |
| Kecerahan | |
| CR | 3000:1 |
| Warna | 16.7M |
| Lampu latar | No |
| Antarmuka | LVDS |
| merek panel | SAMSUNG |
| model panel | LSM270HP06-G01 |
| ukuran panel | 27.0" |
| tipe panel | a-Si TFT-LCD, CELL |
| resolusi | 1920(RGB)×1080, FHD, 81PPI |
| format piksel | RGB Vertical Stripe |
| area tampilan | 597.888(W)×336.312(H) mm |
| bukaan bezel | - |
| ukuran garis besar | 608.288(W)×348.037(H) ×1.11(D) mm |
| permukaan | Antiglare |
| kecerahan | 0 cd/m² |
| rasio kontras | 3000:1 (Typ.) (TM) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10) |
| mode tampilan | SPVA, Normally Black, Transmissive |
| tampilan terbaik di | Symmetry |
| waktu merespon | 21 (Typ.)(G to G) |
| kedalaman kaca | - |
| keterusan | 4.25% (Typ.)(with Polarizer) |
| menampilkan warna | 16.7M 69% NTSC |
| jenis lampu | No B/L |
| frekuensi | 144Hz |
| layar sentuh | Without |
| ic pengemudi | COFBuilt-in 6 source chips |
| berat panel | 600g (Typ.) |
| aplikasi | Desktop Monitor Gaming |
| antarmuka sinyal | LVDS (4 ch, 8-bit) , 61 pins Connector |
| tegangan masukan | 12.0V (Typ.) |
| lingkungan | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
