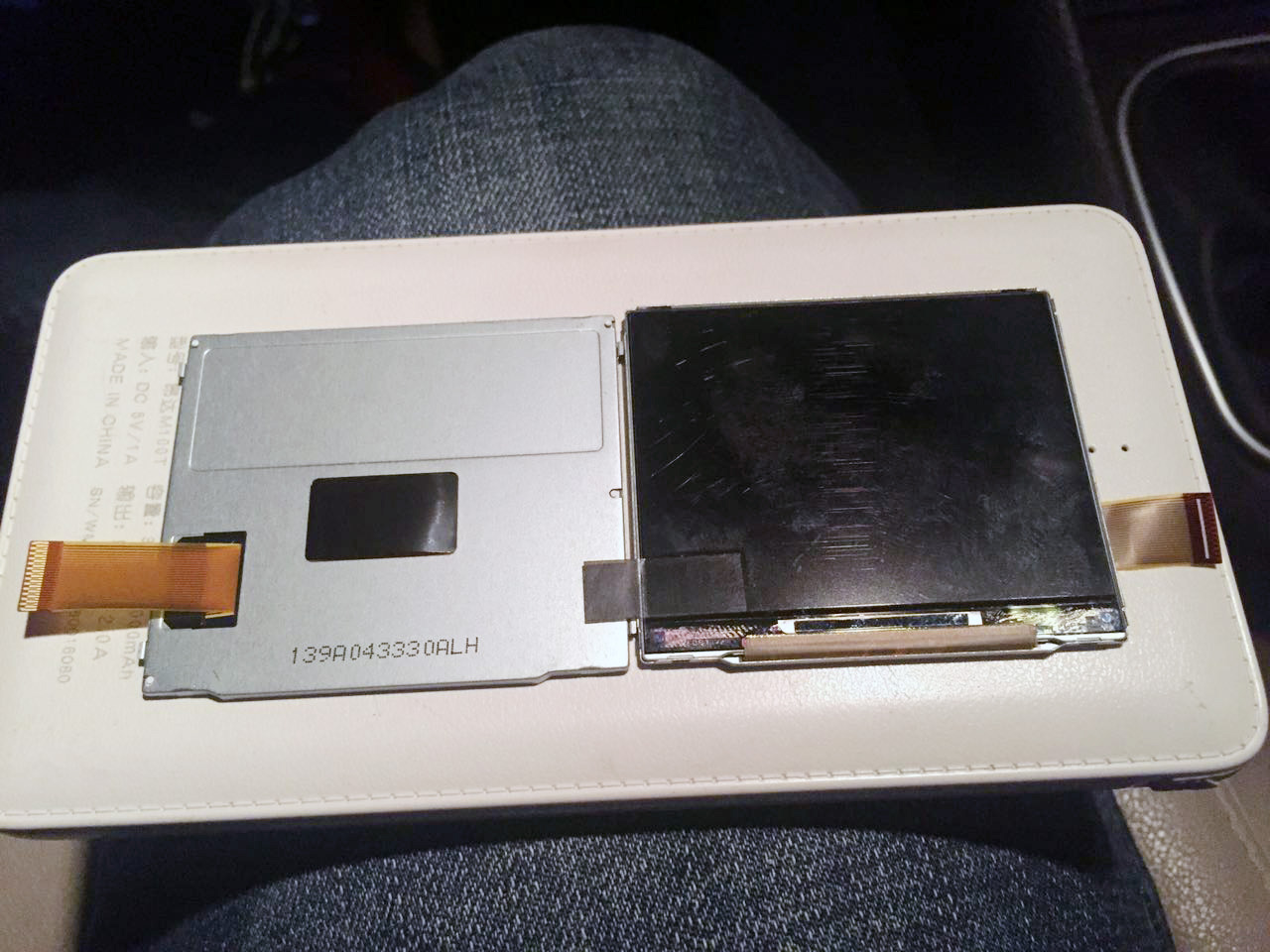

| Nomor Bagian | LS024Q3UX12 |
| Merek | Sharp |
| Ukuran | 2.4 |
| Aplikasi | Handheld & PDA |
| Resolusi | 320×240 |
| Komposisi | CG-Silicon , LCM |
| Kecerahan | |
| CR | 400:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | |
| merek | Sharp |
| ukuran diagonal | 2.4 inch |
| format piksel | 320(RGB)×240 [QVGA] 166PPI |
| daerah aktif | 48.96(H)×36.72(V) mm |
| daerah bezel | 49.86(H)×37.72(V) mm |
| pencahayaan | 450 cd/m² (Typ.) |
| arah pandangan | Symmetry |
| sudut pandang | 80/80/80/80 (Typ.)(CR≥10) |
| warna pendukung | 262K 72% NTSC |
| berat | 9.50g (Typ.) |
| kecepatan bingkai | 65Hz |
| model | LS024Q3UX12 |
| jenis | CG-Silicon , LCM |
| konfigurasi | RGB Vertical Stripe |
| garis besar redup. | 54.3(H)×46.8(V) mm |
| perlakuan | - |
| rasio kontras | 400:1 (Typ.) (TM) |
| waktu merespon | 11/24 (Typ.)(Tr/Td) |
| Modus operasi | IPS, Normally Black, Transmissive |
| sumber cahaya | WLED [1S5P] , W/O Driver |
| dirancang untuk | Handheld & PDA |
| panel sentuh | Without |
