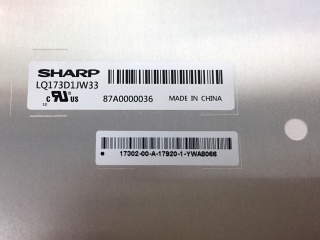

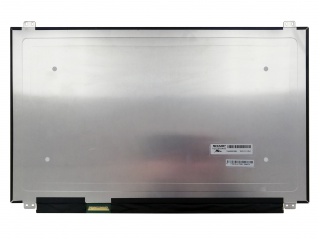

| Nomor Bagian | LQ173D1JW33 |
| Merek | Sharp |
| Ukuran | 17.3 |
| Aplikasi | Laptop |
| Resolusi | 3840×2160 |
| Komposisi | Oxide TFT-LCD , LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | eDP |
| merek panel | Sharp |
| ukuran panel | 17.3" |
| resolusi | 3840(RGB)×2160, UHD, 255PPI |
| area tampilan | 382.12(W)×214.94(H) mm |
| ukuran garis besar | 393.69(W)×252.1(H) ×4(D) mm |
| kecerahan | 350 cd/m² (Typ.) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10) |
| tampilan terbaik di | Symmetry |
| menampilkan warna | 16.7M 100% Adobe RGB |
| frekuensi | 60Hz |
| gaya bentuk | Flat (PCBA Flat, T3.4~4.0mm) |
| antarmuka sinyal | eDP (4 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 40 pins Connector |
| tegangan masukan | 3.3V (Typ.) |
| lingkungan | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| model panel | LQ173D1JW33 (SHP145A) |
| tipe panel | Oxide TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| bukaan bezel | - |
| permukaan | Antiglare (Haze 45%), Hard coating (3H) |
| rasio kontras | 1000:1 (Typ.) (TM) |
| mode tampilan | IPS, Normally Black, Transmissive |
| waktu merespon | 30 (Typ.)(Tr+Td) |
| jenis lampu | WLED , 12K hours , With LED Driver |
| layar sentuh | Without |
| aplikasi | Laptop |
| B173HAN01.0 | AUO | 17.3 | 1920×1080 |
| B173HW01 V4 | AUO | 17.3 | 1920×1080 |
| B173HW01 V5 | AUO | 17.3 | 1920×1080 |
| B173RW01 V3 | AUO | 17.3 | 1600×900 |
| LP173WD1-TLA2 | LG Display | 17.3 | 1600×900 |
| LP173WF1-TLB2 | LG Display | 17.3 | 1920×1080 |
| LP173WF1-TLB3 | LG Display | 17.3 | 1920×1080 |
| LP173WF1-TLC1 | LG Display | 17.3 | 1920×1080 |
| LTN173KT01-H01 | Samsung | 17.3 | 1600×900 |
| LTN173KT01-W01 | Samsung | 17.3 | 1600×900 |
