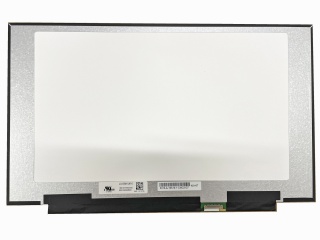

| Nomor Bagian | LQ156M1JW16 |
| Merek | Sharp |
| Ukuran | 15.6 |
| Aplikasi | Laptop Gaming |
| Resolusi | 1920×1080 |
| Komposisi | Oxide TFT-LCD, LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | eDP |
| merek | Sharp |
| model | LQ156M1JW16 (SHP14F4) |
| ukuran diagonal | 15.6 inch |
| jenis | Oxide TFT-LCD, LCM |
| format piksel | 1920(RGB)×1080 [FHD] 141PPI |
| konfigurasi | RGB Vertical Stripe |
| daerah aktif | 344.16(H)×193.59(V) mm |
| garis besar redup. | 350.66(H)×215.54(V) ×2.6(D) mm |
| daerah bezel | - |
| perlakuan | Antiglare, Hard coating (2H) |
| pencahayaan | 300 cd/m² (Typ.) |
| rasio kontras | 1000:1 (Typ.) (TM) |
| arah pandangan | Symmetry |
| waktu merespon | 7.5/3.5 (Typ.)(Tr/Td) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10) |
| Modus operasi | New Mode2, Normally Black, Transmissive |
| warna pendukung | 16.7M 100% sRGB |
| sumber cahaya | WLED , 15K hours , With LED Driver |
| gaya bentuk | Slim (PCBA Flat, T≤3.2mm) |
| dirancang untuk | Laptop Gaming |
| kecepatan bingkai | 240Hz |
| panel sentuh | Without |
| tipe antarmuka | eDP (4 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 40 pins Connector |
| Sumber Daya listrik | 3.3V (Typ.) |
| lingkungan | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -25 ~ 60 °C |
