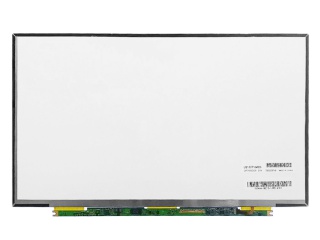

| Nomor Bagian | LQ133T1JW23 |
| Merek | Sharp |
| Ukuran | 13.3 |
| Aplikasi | Laptop |
| Resolusi | 2560×1440 |
| Komposisi | Oxide TFT-LCD, LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | eDP |
| merek | Sharp |
| model | LQ133T1JW23 (SHP1412) |
| ukuran diagonal | 13.3 inch |
| jenis | Oxide TFT-LCD, LCM |
| format piksel | 2560(RGB)×1440 [Quad-HD] 221PPI |
| konfigurasi | RGB Vertical Stripe |
| daerah aktif | 293.76(H)×165.24(V) mm |
| garis besar redup. | 304.98(H)×187.9(V) ×2.6(D) mm |
| daerah bezel | - |
| perlakuan | Antiglare (Haze 42%) |
| pencahayaan | 350 cd/m² (Typ.) |
| rasio kontras | 1000:1 (Typ.) (TM) |
| arah pandangan | Symmetry |
| waktu merespon | 25 (Typ.)(Tr+Td) |
| sudut pandang | 80/80/80/80 (Typ.)(CR≥10) |
| Modus operasi | VA, Normally Black, Transmissive |
| warna pendukung | 16.7M 100% sRGB |
| sumber cahaya | WLED , 10K hours , With LED Driver |
| gaya bentuk | Slim (PCBA Flat, T≤3.2mm) |
| dirancang untuk | Laptop |
| kecepatan bingkai | 60Hz |
| panel sentuh | Without |
| tipe antarmuka | eDP (4 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 40 pins Connector |
| Sumber Daya listrik | 3.3V (Typ.) |
| lingkungan | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
