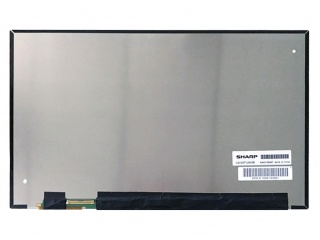

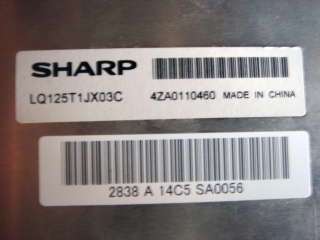

| Nomor Bagian | LQ125T1JX03C |
| Merek | Sharp |
| Ukuran | 12.5 |
| Aplikasi | Laptop Pad & Tab |
| Resolusi | 2560×1440 |
| Komposisi | Oxide TFT-LCD, LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | eDP |
| merek panel | Sharp |
| model panel | LQ125T1JX03C (SHP142C) |
| ukuran panel | 12.5" |
| tipe panel | Oxide TFT-LCD, LCM |
| resolusi | 2560(RGB)×1440, Quad-HD, 235PPI |
| format piksel | RGB Vertical Stripe |
| area tampilan | 276.48(W)×155.52(H) mm |
| bukaan bezel | - |
| ukuran garis besar | 282.68(W)×169.93(H) ×4.9(D) mm |
| permukaan | Glare (Haze 0%), Hard coating |
| kecerahan | 400 cd/m² (Typ.) |
| rasio kontras | 1000:1 (Typ.) (TM) |
| sudut pandang | 80/80/80/80 (Min.)(CR≥10) |
| mode tampilan | IPS, Normally Black, Transmissive |
| tampilan terbaik di | Symmetry |
| waktu merespon | 25 (Typ.)(Tr+Td) |
| menampilkan warna | 16.7M |
| jenis lampu | WLED , 15K hours , With LED Driver |
| frekuensi | 60Hz |
| layar sentuh | Without |
| gaya bentuk | Slim (PCBA Bent, T≤3.0mm) |
| aplikasi | Laptop Pad & Tablet |
| antarmuka sinyal | eDP (4 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 40 pins Connector |
| tegangan masukan | 3.3V (Typ.) |
| lingkungan | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
