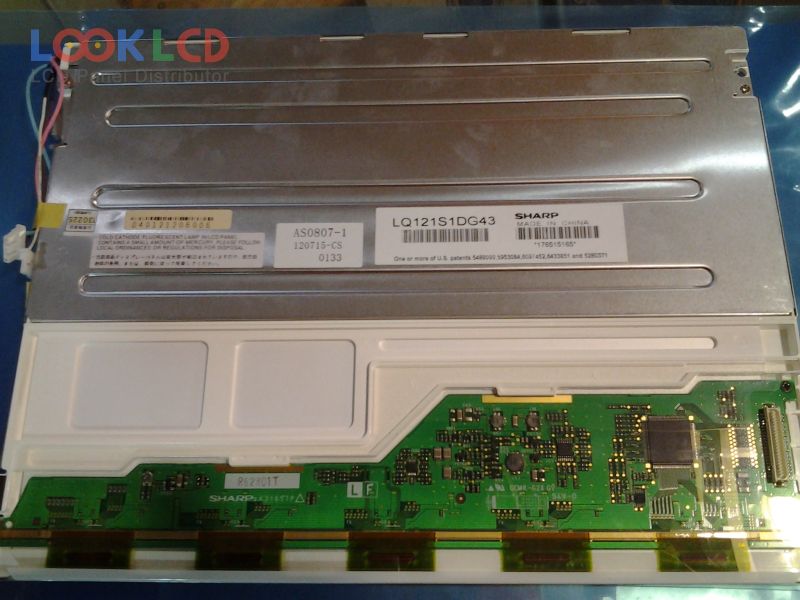

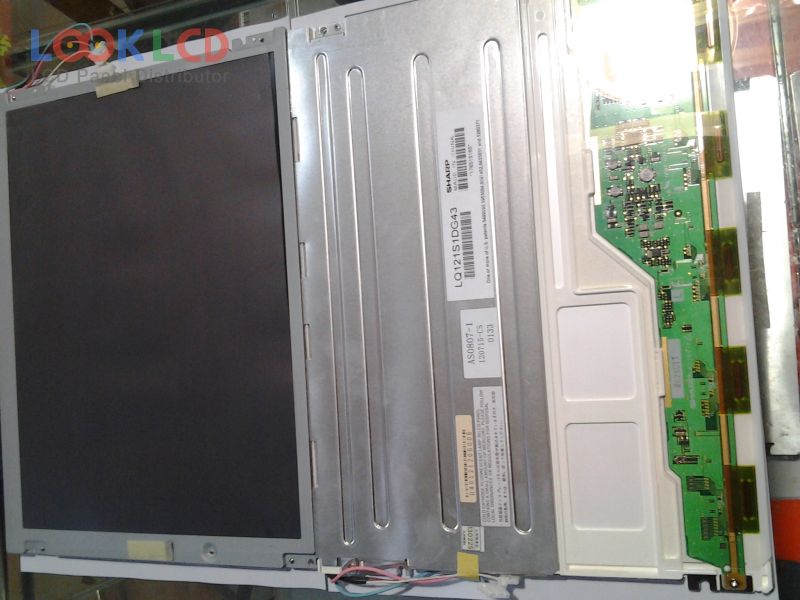

| Nomor Bagian | LQ121S1DG43 |
| Merek | SHARP |
| Ukuran | 12.1 |
| Aplikasi | IA |
| Resolusi | 800×600 |
| Komposisi | LCM |
| Kecerahan | 370 |
| CR | 450:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antarmuka | TTL |
| merek panel | SHARP |
| model panel | LQ121S1DG43 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 12.1 inch |
| resolusi | 800(RGB)×600 , SVGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 246×184.5 mm |
| garis besar | 276×209×11 mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 370 cd/m² (Typ.) |
| rasio kontras | 450:1 (Typ.) |
| menampilkan warna | 262K (6-bit) |
| waktu merespon | 10/25 (Typ.)(Tr/Td) |
| sudut pandang | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| jenis lampu | 2 pcsCCFLWithout Driver |
| antarmuka sinyal | Parallel RGB (1 ch, 6-bit), 41 pins |
| tegangan masukan | 3.3/5.0V (Typ.)(VCC) |
| aplikasi | IA |
