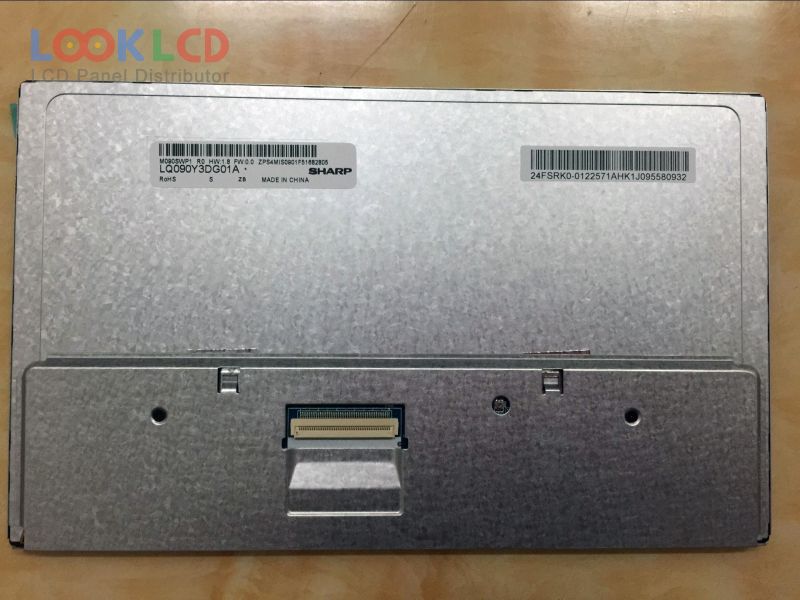

| Nomor Bagian | LQ090Y3DG01A |
| Merek | SHARP |
| Ukuran | 9.0 |
| Aplikasi | DPF |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | 300 |
| CR | 500:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | TTL |
| merek panel | SHARP |
| model panel | LQ090Y3DG01A |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 9.0 inch |
| resolusi | 800(RGB)×480 , WVGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 198×111.696 mm |
| garis besar | 211.1×128.4 mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 300 cd/m² (Typ.) |
| rasio kontras | 500:1 (Typ.) |
| menampilkan warna | 16.7M (8-bit) |
| waktu merespon | 25 (Typ.)(Tr+Td) |
| sudut pandang | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antarmuka sinyal | Parallel RGB (1 ch, 8-bit) |
| aplikasi | DPF |
