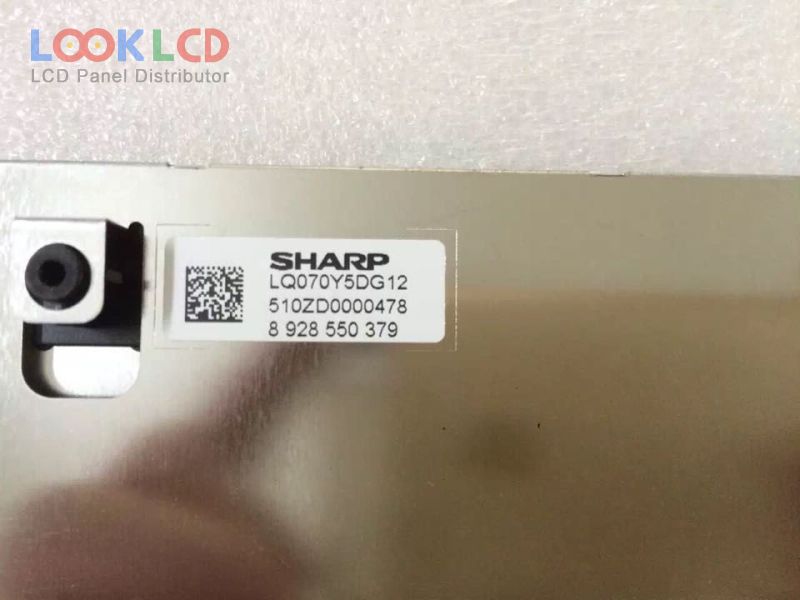

| Nomor Bagian | LQ070Y5DG12 |
| Merek | SHARP |
| Ukuran | 7.0 |
| Aplikasi | CNS |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | |
| CR | |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | TTL |
| merek panel | SHARP |
| model panel | LQ070Y5DG12 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 7.0 inch |
| resolusi | 800(RGB)×480 , WVGA |
| mode tampilan | TN, Normally White, Transmissive |
| permukaan | Antiglare |
| kecerahan | |
| rasio kontras | |
| menampilkan warna | 262K (6-bit) |
| waktu merespon | |
| sudut pandang | |
| frekuensi | 60Hz |
| jenis lampu | WLED |
| antarmuka sinyal | CMOS (1 ch, 6-bit) |
| aplikasi | CNS |
| LQ070M1SX01 | SHARP | 7.0 | 1200×1920 |
| LQ070T1LG01 | SHARP | 7.0 | 800×480 |
| LQ070T3AG02 | SHARP | 7.0 | 480×234 |
| LQ070T5AR01 | SHARP | 7.0 | 480×234 |
| LQ070T5DR06 | SHARP | 7.0 | 480×240 |
| LQ070Y3DG01 | SHARP | 7.0 | 800×480 |
| LQ070Y3LG4A | SHARP | 7.0 | 800×480 |
| LQ070Y5DG11 | SHARP | 7.0 | 800×480 |
| LQ070Y5DG20 | SHARP | 7.0 | 800×480 |
| LQ070Y5DG36 | SHARP | 7.0 | 800×480 |
| AM-800480RSTMQW-TA1H | AMPIRE | 7.0 | 800×480 |
| C070VVN03.1 | AUO | 7.0 | 800×480 |
| C070VW04 V2 | AUO | 7.0 | 800×480 |
| DJ065NA-01C | Innolux | 6.5 | |
| HSD070IDW1-E11 | HannStar | 7.0 | 800×480 |
| LA061WQ1-TD05 | LG Display | 6.1 | 480×272 |
| LQ065Y5DG03 | SHARP | 6.5 | 800×480 |
| LQ080Y5CGQ1 | SHARP | 8.0 | 800×480 |
| PW050XS3 | E Ink | 5.0 | 320×220 |
| TJ123NP01AA | TPO | 12.3 | 1280×480 |
