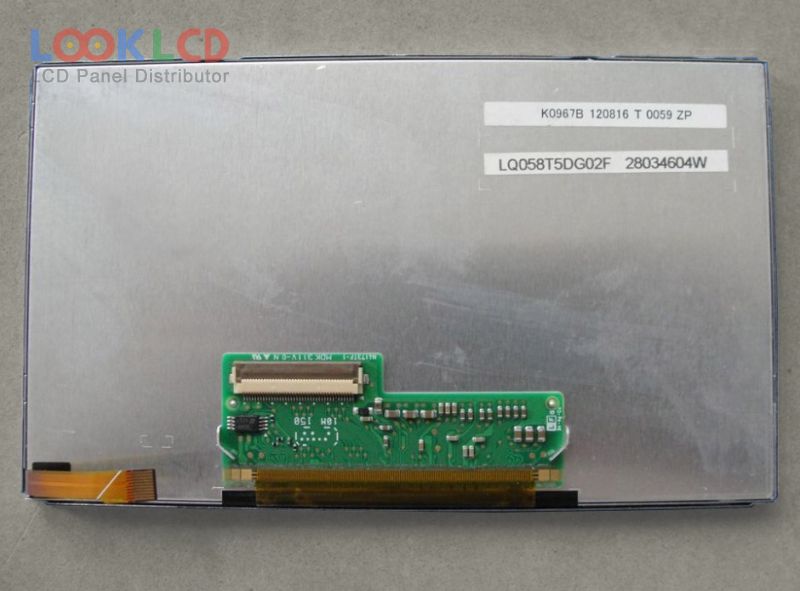

| Nomor Bagian | LQ058T5DG02F |
| Merek | SHARP |
| Ukuran | 5.8 |
| Aplikasi | CNS |
| Resolusi | 480×240 |
| Komposisi | LCM |
| Kecerahan | 420 |
| CR | |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | TTL |
| merek panel | SHARP |
| model panel | LQ058T5DG02F |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 5.8 inch |
| resolusi | 480(RGB)×240 , WQVGA |
| mode tampilan | Transmissive |
| daerah aktif | 128.4×70.92 mm |
| garis besar | 139×82.7 mm |
| permukaan | |
| kecerahan | 420 cd/m² (Typ.) |
| rasio kontras | |
| menampilkan warna | 262K (6-bit) |
| waktu merespon | |
| sudut pandang | |
| jenis lampu | WLED |
| antarmuka sinyal | Parallel RGB (1 ch, 6-bit) |
| roh: | |
| aplikasi | CNS |
