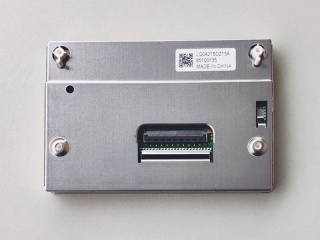

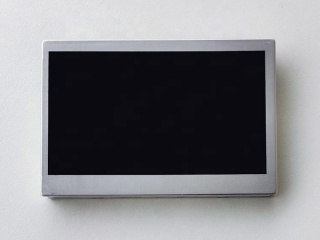

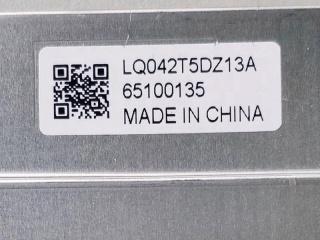

| Nomor Bagian | LQ042T5DZ13A |
| Merek | Sharp |
| Ukuran | 4.2 |
| Aplikasi | Industrial Automotiv |
| Resolusi | 480×272 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | - |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | |
| merek | Sharp |
| ukuran diagonal | 4.2 inch |
| format piksel | 480×272(RGB) [WQVGA] 131PPI |
| daerah aktif | 92.88(H)×52.632(V) mm |
| daerah bezel | 94.48(H)×54.27(V) mm |
| pencahayaan | 500 cd/m² (Typ.) |
| arah pandangan | Symmetry |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| warna pendukung | 262K |
| berat | 120g (Typ.) |
| kecepatan bingkai | 50Hz |
| model | LQ042T5DZ13A |
| jenis | a-Si TFT-LCD , LCM |
| konfigurasi | RGB Horizontal Stripe |
| garis besar redup. | 102.5(H)×69(V) ×12.3(D) mm |
| perlakuan | - |
| rasio kontras | - |
| waktu merespon | 15/5 (Typ.)(Tr/Td) |
| Modus operasi | ASV, Normally Black, Transmissive |
| sumber cahaya | WLED , 10K hours , With LED Driver |
| dirancang untuk | Industrial Automotive Display |
| panel sentuh | Without |
