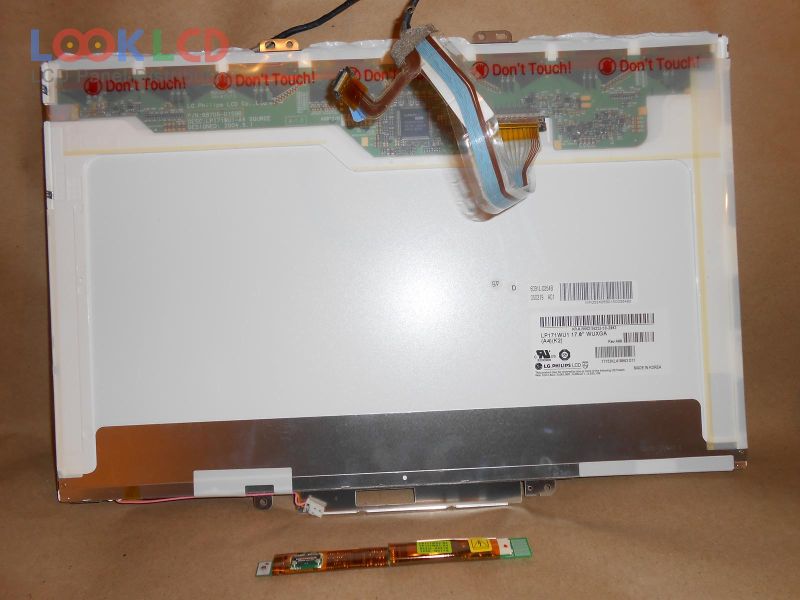

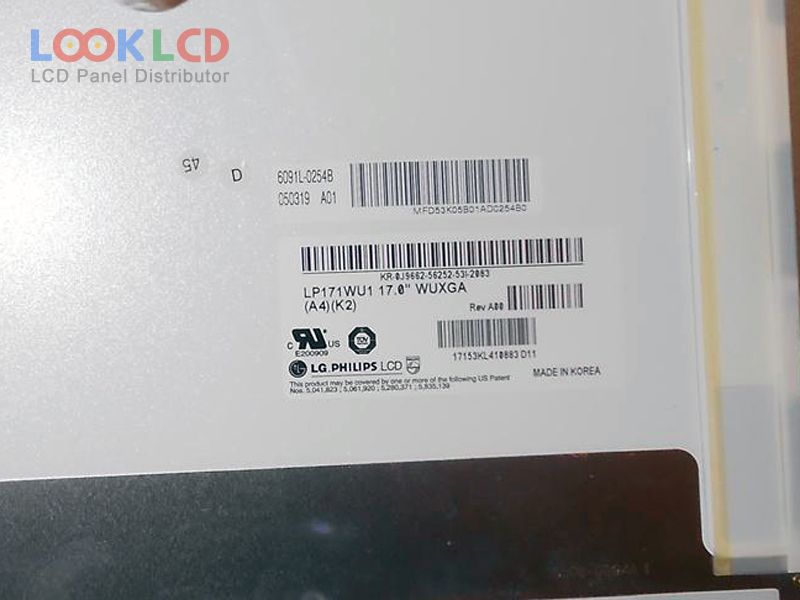

| Nomor Bagian | LP171WU1-A4K2 |
| Merek | LG Display |
| Ukuran | 17.1 |
| Aplikasi | NBPC |
| Resolusi | 1920×1200 |
| Komposisi | LCM |
| Kecerahan | 180 |
| CR | 350:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antarmuka | LVDS |
| merek panel | LG.Philips LCD |
| model panel | LP171WU1-A4K2 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 17.1 inch |
| resolusi | 1920(RGB)×1200 , WUXGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 367.2×229.5 mm |
| garis besar | 382.7×267.2×6.6 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | Glare (Haze 0%), Hard coating (2H) |
| kecerahan | 180 cd/m² (Typ.) |
| rasio kontras | 350:1 (Min.) |
| menampilkan warna | 262K (6-bit), CIE193150% |
| waktu merespon | 25 (Typ.)(Tr+Td) |
| sudut pandang | 65/65/50/50 (Min.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antarmuka sinyal | LVDS (2 ch, 6-bit), 30 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | NBPC |
| LP171WP4-TLB1 | LG Display | 17.1 | 1440×900 |
| LP171WP4-TLQ2 | LG Display | 17.1 | 1440×900 |
| LP171WP6-TL04 | LG Display | 17.1 | 1440×900 |
| LP171WP9-TLB2 | LG Display | 17.1 | 1440×900 |
| LP171WU1-A4K2 | LG Display | 17.1 | 1920×1200 |
| LP171WU1-TLA5 | LG Display | 17.1 | 1920×1200 |
| LP171WU1-TLA7 | LG Display | 17.1 | 1920×1200 |
| LP171WU5-TLA1 | LG Display | 17.1 | 1920×1200 |
| LP171WU6-TLA1 | LG Display | 17.1 | 1920×1200 |
| LP171WU8-SLB1 | LG Display | 17.1 | 1920×1200 |
| B133XW04 V0 | AUO | 13.3 | 1366×768 |
| B140XTT01.0 | AUO | 14.0 | 1366×768 |
| B141EW05 V2 | AUO | 14.1 | 1280×800 |
| B154EW08 V1 | AUO | 15.4 | 1280×800 |
| LP140WH4-TLA1 | LG Display | 14.0 | 1366×768 |
| LP141WX5-TLA1 | LG Display | 14.1 | 1280×800 |
| LTM12C318S | TOSHIBA | 12.1 | 1024×768 |
| N133BGE-EAB | Innolux | 13.3 | 1366×768 |
| N154I3-L03 | Innolux | 15.4 | 1280×800 |
| NT116WHM-N11 | BOE | 11.6 | 1366×768 |
