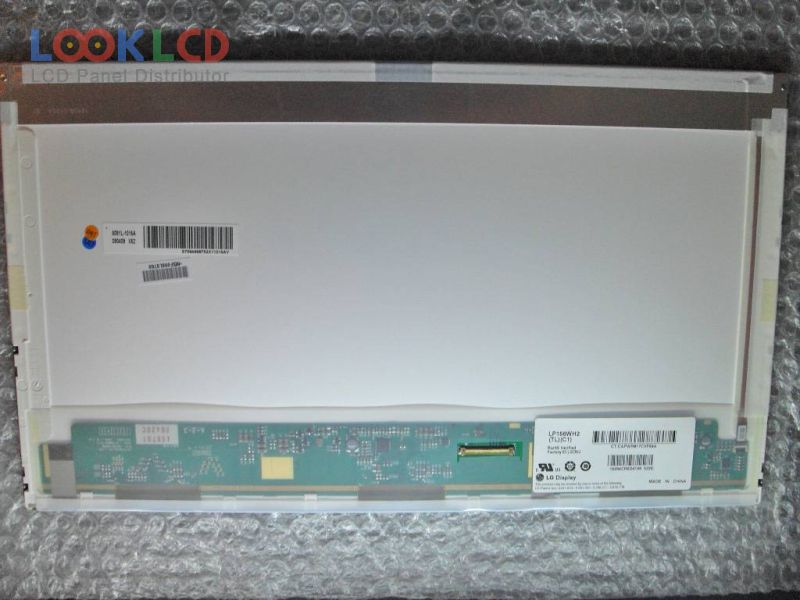

| Nomor Bagian | LP156WH2-TLC1 |
| Merek | LG Display |
| Ukuran | 15.6 |
| Aplikasi | NBPC |
| Resolusi | 1366×768 |
| Komposisi | LCM |
| Kecerahan | 200 |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek panel | LG Display |
| model panel | LP156WH2-TLC1 61 Compatible model |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 15.6 inch |
| resolusi | 1366(RGB)×768 , WXGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 344.232×193.536 mm |
| garis besar | 359.3×209.5×5.5 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | Glare (Haze 0%), Hard coating (3H) |
| kecerahan | 200 cd/m² (Typ.) |
| rasio kontras | 500:1 (Min.) |
| menampilkan warna | 262K (6-bit) |
| waktu merespon | 16 (Typ.)(Tr+Td) |
| sudut pandang | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antarmuka sinyal | LVDS (1 ch, 6-bit), 40 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | NBPC |
| LP156WF1-TLF3 | LG Display | 15.6 | 1920×1080 |
| LP156WF3-SLB2 | LG Display | 15.6 | 1920×1080 |
| LP156WF4-SLB2 | LG Display | 15.6 | 1920×1080 |
| LP156WF6-SPB1 | LG Display | 15.6 | 1920×1080 |
| LP156WF7-SPB2 | LG Display | 15.6 | 1920×1080 |
| LP156WH2-TLC1 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLQB | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLRA | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLA1 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLE1 | LG Display | 15.6 | 1366×768 |
| B141EW04 V5 | AUO | 14.1 | 1280×800 |
| B156HW01 V0 | AUO | 15.6 | 1920×1080 |
| LP171WU1-TLA2 | LG Display | 17.1 | 1920×1200 |
| LP201WE1-TLA1 | LG Display | 20.1 | 1680×1050 |
| LQ150X1LBE1 | SHARP | 15.0 | 1024×768 |
| LT121DEE3P00 | TOSHIBA | 12.1 | 1024×768 |
| LT133EE10300 | TOSHIBA | 13.3 | 1366×768 |
| LTN141AT02-301 | Samsung | 14.1 | 1280×800 |
| LTN156AT02-A11 | Samsung | 15.6 | 1366×768 |
| N133BGE-L31 | Innolux | 13.3 | 1366×768 |
