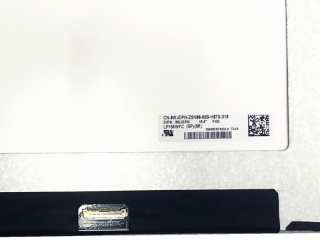

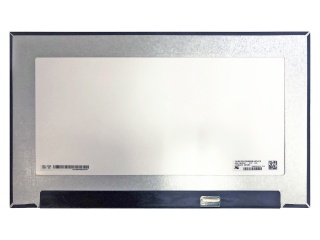

| Nomor Bagian | LP156WFC-SPM1 |
| Merek | LG Display |
| Ukuran | 15.6 |
| Aplikasi | Laptop |
| Resolusi | 1920×1080 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 700:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | eDP |
| pabrikan | LG Display |
| nama model | LP156WFC-SPM1 (LGD05E6) 0 Compatible |
| ukuran layar | 15.6 inch |
| tipe layar | LCM, a-Si TFT-LCD |
| nomor piksel | 1920(RGB)×1080 (FHD) 141PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 344.16 × 193.59 (H×V) |
| garis besar (mm) | 350.66 × 205.69 × 5.05 (H×V×D) |
| area bezel (mm) | - |
| perlakuan | Antiglare |
| pencahayaan | 220 cd/m² (Typ.) |
| rasio kontras | 700 : 1 (Typ.) (TM) |
| sudut pandang | 80/80/80/80 (Min.)(CR≥10) |
| tanggapan | 30 (Typ.)(Tr+Td) ms |
| pemandangan bagus di | Symmetry |
| mode kerja | IPS, Normally Black, Transmissive |
| kedalaman warna | 262K |
| lampu latar | WLED , 15K hours , With LED Driver |
| bentuk garis besar | Slim (PCBA Bent, T≤3.0mm) |
| digunakan untuk | Laptop |
| tingkat penyegaran | 60Hz |
| layar sentuh | Without |
| jenis sinyal | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , Connector 30 pins |
| sumber tegangan | 3.3V (Typ.) |
| maks. peringkat | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C ; Vibration Level: 2.0G (19.6 m/s²) |
